영상보안 IPC 제품 Semi Dome 카메라

IPC2533-UFN-SIR50-Z6022

5.0MP Starlight & Ultra WDR HD Network Vandal-Proof Varifocal IR Semi Dome

구매수량
회원가
로그인하세요.

Excellent Image Quality

· 5.0 Megapixel 1/2.8'' progressive scan CMOS sensor

· High definition and smooth picture, 3072x1728@30fps / 3072x1728@25fps(with WDR on)

· H.265 video codec, saves up to 50% bandwidth and storage

· Ultra low illumination, 0.005lux with color picture

· 120dB Ultra WDR

· 3D noise reduction / Auto Iris / HLC


Intelligent Functions

· Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge /

· Support Deep Learning Algorithm


Vandal-Proof

· Above IK10 @ 50J collision energy


Integrated High Efficiency IR

· Industrial IR LED with long operational lifespan

· Up to 50m IR distance

· Smart IR function


A Variety of Installation Modes

· Supports 90°, 180°, 270° image rotation

· Motorized varifocal lens


Abundant Functions and Features

· Micro SD card slot, supports Automatic Network Replenishment (ANR)

· Bi-directional audio / alarm in and out / RS485 / Built-in Mic & Speaker

· 2 channel audio input simultaneously

· Up to 3 Multi-stream

· PoE

· IP67


  IPC2533-UFN-SIR50-Z
Camera
Image Sensor  1/2.8’’ progressive scan CMOS
Pixels 5.0 Megapixel
Min. Illumination  Color: 0.005lux@ (F1.6,  AGC ON)
B/W: 0.0005lux@ (F1.6,  AGC ON); 0lux  with IR
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >=58db
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / BLC / WDR / HLC
Lens
Mount Type Φ14
Auto Iris DC drive
Focal Length -Z2812:  2.8~12mm @ F1.6~F3.3 motorized varifocal lens
-Z6022:  6~22mm @ F1.6~F3.3 motorized varifocal lens
Focus Control Manual / Semi-Automatic / Auto
Angle of View -Z2812: Horizontal:29.4°(T)~95.3°(W),Vertical:16.5°(T)~49.2°(W)
-Z6022: Horizontal:17.6°(T)~42.9°(W),Vertical:9.7°(T)~23.4°(W)
Adjustment Range Pan: -120° ~ +120° / Tilt: 0° ~ 65° / Rotation: -90° ~ +90°
Infrared
IR Distance 20 ~ 50m
IR Intensity Smart IR
Video
Compression Smart 265 / H.265(Main Profile) / H.264(BaseLine Profile/Main Profile/High Profile) /MJPEG
Image Resolution Main stream: 3072x1728
DOUSHI
Third stream: D1
Frame Rate Main stream: 3072x1728@30fps / 3072x1728@25fps(with WDR on)
Secondary stream: 720P@30fps
Third stream: D1@30fps
Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror / Rotation at 90°,180°,270°
Audio
Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP,IGMP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 20 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2016, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm
Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Basic Intelligent Tampering / Defocus / Scene change / Object left / Object removal / Audio surge
Deep Learning Intelligent Human & Vehicle Detection:
Motion detection / Guard line  / Enter guard area / Exit guard area / People Gathering
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet 10/100M, RJ45 interface
Audio In / Out 1×Line In1×Line Out, 1 x Built-in Mic in, 1 x Speaker
Control 1 x RS485
Alarm In / Out 2 x Input / 1 x Output
Memory Slot Micro SD card slot, supports up to 256GB
Environmental
Operating Temperature  -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity  10% ~ 95%,No condensation
Protection Level IP67,IK10+ @50J
Electrical
Power  12V DC ± 10% / PoE (IEEE802.3af)
Power Consumption Max. 12W
Mechanical
Weight  0.71 kg / 1.57lb (Gross Weight)

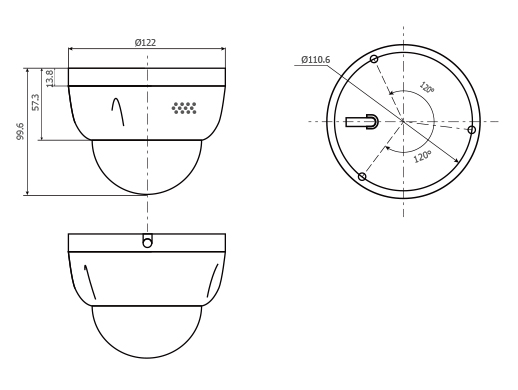

Dimensions Φ122× 96.13mm / Φ4.8’’ x 3.78’’
