IPC2533-UFN-SIR50-L0200 |
IPC2533-UFNW-SIR50-L0200 |
| Camera |
| Image Sensor |
1/2.8’’ progressive scan CMOS |
| Pixels |
5.0 Megapixel |
| Min. Illumination |
Color: 0.005lux@ (F2.0, AGC ON) |
| B/W: 0.0005lux@ (F2.0, AGC ON); 0lux with IR |
| Shutter Speed |
1 ~ 1/30,000s |
| Day / Night |
Auto (ICR) / Color / B/W |
| Wide Dynamic Range |
Ultra WDR, >=120dB |
| S/N Ratio |
>=58db |
| White Balance |
Auto / Manual |
| Gain Control |
Auto / Manual |
| Backlight Compensation |
Off / BLC / WDR / HLC |
| Lens |
| Mount Type |
M12 |
| Focal Length |
2.0mm@F2.0 |
| Angle of View |
-L0200:Horizontal:149.2°,Vertical:113.8° |
| Adjustment Range |
Pan: -120° ~ +120° / Tilt: 0° ~ 65° / Rotation:
-90° ~ +90° |
| Infrared |
| IR Distance |
50m |
| IR Intensity |
Smart IR |
| Video |
| Compression |
Smart 265 / H.265(Main Profile) /
H.264(BaseLine Profile/Main Profile/High Profile) /MJPEG |
| Image Resolution |
Main stream: 2592x1944 |
| Secondary stream: 720P |
| Third stream: D1 |
| Frame Rate |
Main stream: 2592x1944@30fps |
| Secondary stream: 720P@30fps |
| Third stream: D1@30fps |
| Bitrate |
32kbps ~ 16Mbps |
| Bitrate Control |
VBR / CBR |
| Multi-stream |
Supported |
| Caption |
Date and time / Alarm / Customized |
| Privacy Masking |
Up to 4 zones |
| Motion Detection |
Up to 4 zones |
| Motion Detection |
Supported |
| ROI |
Supported |
| Digital Noise Reduction |
3D noise reduction |
| Digital Defog |
Supported |
| Distortion Correction |
Supported |
| Image Flip |
Flip / Mirror / Rotation at 90°,180°,270° |
| Audio |
| Compression |
G.711a / G.711u / ADPCM / G.722 / AAC-LC /
G.722.1c / G.726 |
| Bitrate |
32kbps ~ 64kbps |
| Audio Function |
Bi-directional audio / AEC / Mixed audio
recording / Dumb / Mute |
| Network |
| Network Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS/DDNS,
RTP/RTCP, RTSP, PPPoE, FTP,IGMP,
UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
| User Interface |
IPC Control (IE, Firefox, Chrome) |
| Max. User Access |
Max. 20 Users (includes 2 internal) |
| Wireless |
/ |
Wi-Fi |
| Wi-Fi |
/ |
802.11b/g/n
2.4G, Wi-Fi AP |
| Application
Programming |
ONVIF (Profile S, Profile G), GB/T 28181-2016,
API, CGI |
| Automatic Network Replenishment (ANR) |
Supported |
| Alarm |
| Alarm Triggers |
Alarm input / Network disconnect / Disk full /
Disk error |
| Basic Intelligent |
Tampering / Defocus / Scene change / Object
left / Object removal / Audio surge |
| Deep
Learning Intelligent |
Human & Vehicle Detection:
Motion detection / Guard line /
Enter guard area / Exit guard area / People Gathering |
| Alarm
Events |
Alarm report / Recording / Text overlay /
Snapshot / External output / Email notice / Acoustic alarm |
| Interfaces |
| Ethernet |
10/100M, RJ45 interface |
| Wi-Fi |
/ |
Built-in Wi-Fi
module |
| Audio In
/ Out |
1×Line In，1×Line Out, 1 x Built-in Mic in, 1 x Speaker |
| Control |
1 x RS485 |
| Alarm In / Out |
2 x Input / 1 x Output |
| Memory Slot |
Micro SD card slot, supports up to 256GB |
| Environmental |
| Operating Temperature |
-40°C ~
70°C / -40°F ~ 158°F |
| Operating Humidity |
10% ~ 95%,No condensation |
| Protection Level |
IP67,IK10+ @50J |
| Electrical |
| Power |
12V DC ± 10% / PoE (IEEE802.3af) |
| Power Consumption |
Max. 12W |
| Mechanical |
| Weight |
0.71 kg / 1.57lb (Gross Weight) |

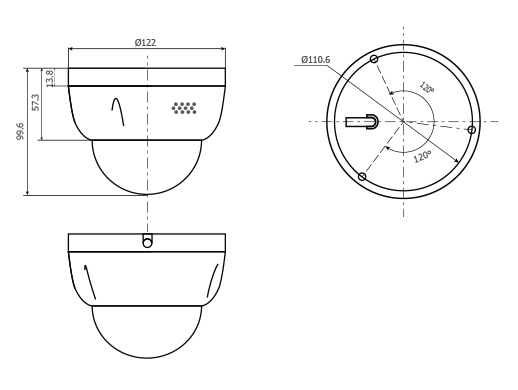

| Dimensions |
Φ122× 96.13mm / Φ4.8’’ x 3.78’’ |
IPC2533-UFN-SIR50-L0200
IPC2533-UFN-SIR50-L
IPC2533-UFN-SIR50-Z2812
