P3010-V2F2M 제품대표이미지
P3010-V2F2M 상세이미지 1

네트워크 PoE 스위치 L2 PoE

P3010-V2F2M

10포트 풀 기가비트 L2+ 관리형 파이버 PoE 스위치

회원가
로그인하세요.

8-Port Gigabit L2+ Managed PoE Fiber Switch

  • 8×10/100/1000Base-T PoE 포트와 2×100/1000Base-X SFP 업링크 포트 제공

  • IEEE 802.3af/at PoE 지원, 포트당 최대 30W 전력 공급

스마트 PoE 전력 공급 및 PD 자동 감지

  • 표준 PoE 장비를 자동 감지하여 네트워크 케이블을 통해 안정적인 전력 공급

  • 무선 AP, IP 카메라, VoIP 전화기, 영상 출입통제 시스템 등 다양한 PoE 장비 지원

L2+ 고급 네트워크 관리 기능

  • IPv4 / IPv6 관리 및 Static Routing 지원으로 효율적인 네트워크 운영

  • ACL, QoS, VLAN 정책을 통한 트래픽 제어 및 보안 강화

고속 네트워크 이중화 및 링크 보호

  • STP / RSTP / MSTP 기반 빠른 링크 복구(<50ms) 지원

  • ERPS(ITU-T G.8032) 링 보호 기술로 네트워크 안정성 향상(<20ms)

다양한 네트워크 관리 인터페이스 지원

  • Web, CLI, SNMP, Telnet 기반 통합 네트워크 관리 제공

  • PoE 전력 관리, 포트 트래픽 제어, VLAN 구성 등 유연한 운영 가능


ModelPOE33108PFM POE33108PFM-at
Interface Characteristics
Fixed Port1*Console RS232 port (115200,N,8,1)
8*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber ports (Data)
Ethernet PortPort 1-8 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/
MDI-X self-adaption
Twisted Pair Transmission10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber PortGigabit optical fiber interface, default no include optical module (optional
single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/
Distance		Multi-mode: 850nm /0-550m, Single-mode: 1310nm /0-40km, 1550nm
/0-120km.
Chip Parameter
Network
Management Type		L2+
Network ProtocolIEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding ModeStore and Forward (Full Wire Speed)
Switching Capacity20Gbps (non-blocking)
Forwarding
Rate@64byte		14.88Mpps
CPU416MHz
DRAM1G
FLASH128M
Buffer Memory4M
MAC8K
Jumbo Frame9.6K
LED IndicatorPower: PWR (Green), System: SYS (Green), Network: Link (Yellow), Fiber
port: L/A (Green), POE: PoE (Green)
Reset SwitchYes, support one key to restore factory settings
PoE & Power Supply
PoE PortPort 1-8
PoE ManagementPort PoE output power allocation, on/off/af/at PoE power supply total power limit configuration
PoE work and time scheduling, Power supply delay start
Port PoE output priority configuration, Port PoE working status display
Power Supply Pin1/2(+) 3/6 (-)
Max Power Per Port30W, IEEE 802.3 af/at
Total PWR / Input
Voltage		130W/ (AC100-240V) 250W/ (AC100-240V)
Power ConsumptionStandby<8W, Full Load<120W Standby<10W, Full Load<240W
Power SupplyBuilt-in power supply, AC100~240V Built-in power supply, AC100~240V
50-60Hz, 2.3A 50-60Hz, 4.1A
Physical Parameter
Operation TEMP/
Humidity		-20°C~+55°C, 5%~90% RH Non condensing
Storage TEMP/
Humidity		-40°C~+75°C, 5%~95% RH Non condensing

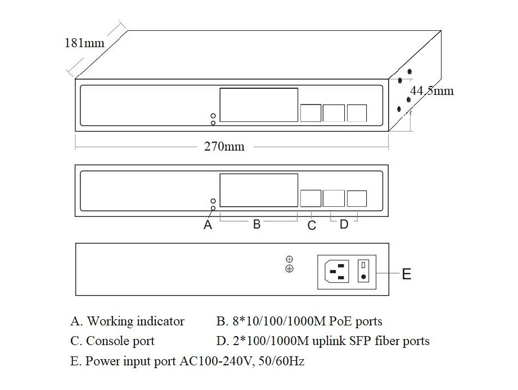

Dimension (L*W*H)270*181*44.5mm
Net /Gross Weight1.3kg/ 1.9kg 1.5kg/ 2.1kg
InstallationDesktop, wall mount, 19-inch 1U cabinet mount
Certification & Warranty
Lightning ProtectionLightning protection: 4KV 8/20us, Protection level: IP30
CertificationCCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B,
RoHS
Warranty3 years, lifelong maintenance.
Network Management Feature
InterfacePort temperature protection setting IEEE 802.3x flow control (Full duplex)
Port green Ethernet Energy-saving setting Broadcast storm control based on port speed
Limit the speed of the message traffic at the inbound and outbound ports
mini granularity is 64Kbps
L3 FeatureARP protocol, max 1024 entries
Static route /default route max 128 entries
L2+ network management function, IPV4/IPV6 management
L3 software routing non-wire-speed forwarding, support communication between different network segments and different VLAN
VLANPort-based VLAN (4K), IEEE802.1q Voice VLAN, Protocol-based VLAN Access, Trunk, Hybrid port configuration
MAC address-based VLAN, QinQ configuration
Port AggregationLACP dynamic aggregation, static aggregation
Max 5 aggregation groups and 8 ports per group
Spanning TreeSTP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
ERPS Ring Network
Protocol		G.8032 (ERPS), recovery time less than 20ms
255 Ring at most, Max 254 devices per ring.
MulticastIGMP Snooping v1/v2/v3, Max 1024 multicast groups
MLD Snooping, Multicast VLAN, User quick exit mechanism
Port MirroringBidirectional data mirroring based on port
QoSFlow-based packet filtering, Priority Mark/ Remark Flow-based redirection, Flow-based rate limiting
8*Output queues of each port, 802.1p/ DSCP priority mapping
Diff-Serv QoS, Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACLACL distribution based on port and VLAN
L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
SecurityIEEE802.1X & MAC address authentication
IP-MAC-VLAN-Port binding, MAC learning limit Broadcast storm control, Backup for host datum
Mac black holes, IP source protection, Anti-DoS attack SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection
AAA & RADIUS & TACACS+ certification, ARP inspection
DHCPDHCP Client, DHCP Snooping, DHCP Server, DHCP Relay
ManagementSystem work log, Link Layer Discovery Protocol NMS platform cluster management (LLDP+SNMP) NTP clock, Cable length detection, SNMP V1/V2/V3 Ping detection, Web network management (HTTPS)
One click recovery, View CPU real-time utilization status
FTP, TFTP, Xmodem, SFTP file upload and download management Console/ AUX Modem/ Telnet/ SSH2.0 CLI command line configuration
SystemWeb browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5
and above Ethernet cable
