네트워크 기가비트 스위치 L2 / L2 + 스위치

S3500-26G-V2F4CM

26-Port Full Gigabit Managed Ethernet switch

회원가
로그인하세요.

Product Features

· 22-Port 10/100/1000Base-T + 2 Combo + 2 (100/1000M) SFP

· L2+ features provide better manageability, security, QoS, and performance.

· Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP,

· Ethernet+ management, IP Source Guard, ARP inspection, ACLs etc.

· Support spanning tree STP(802.1D) and RSTP(802.1W).

· Jumbo frames support up to 9.6K kilobytes.

· Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.

· Support cable diagnosis

· G.8032, support <50ms industrial quick ring protection


S3500-26G-V2F4CM
Performance (Switching capacity and forwarding rate)
Packet Forwarding Rate 38.69M
Capacity in Millions of Packets per Second (mpps)
(64-byte packets)
Bandwidth 256G
Switching Capacity in Gigabits per Second (Gbps)
Interface
Port

22-Port 10/100/1000Base-T + 2x Combo ports + 2x (100/1000M) SFP slots

Layer 2 Switching
Spanning Tree
Protocol (STP)
Standard Spanning Tree 802.1d
Rapid Spanning Tree (RSTP) 802.1w
G.8032 ERPS

<50ms ring protection for industrial high reliable application

Aggregation Link Aggregation Control Protocol (LACP) IEEE 802.3ad;
Up to 13 groups ; Up to 16 ports per group
VLAN Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) ;
Port-based VLAN; 802.1Q tag-based VLAN
IGMP v1/v2 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 1024 multicast groups
(source-specific multicasting is not supported)
Security
Secure Shell (SSH)
Protocol
SSH secures Telnet traffic in or out the switch, SSH v1 and v2 are supported
Secure Sockets Layer(SSL), HTTPS SSL encrypts the http traffic, allowing advance secure access to the browser-based management GUI in the switch
Port
Security
Locks MAC Addresses to ports, and limits the number
of learned MAC addresses
DHCP Snooping prevent unauthorized configuration and use of IP addresses, while providing support for IP Source Guard and ARP detection
IP Source Guard Prevents datagram with spoofed addresses from
being in the network
ARP Inspection Prevent ARP spoofing attacks and ARP
Storm control Prevents traffic on a LAN from being disrupted by a
broadcast, multicast, or unicast storm on a port
ACLs Support for up to 256 entries; Drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP) / IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets,
IGMP packets, TCP flag
Quality of Service
Hardware
Priority Queue
Support 8 hardware queues
Scheduling 8 COS queues per port support strict priority and
weighted round-robin (WRR)
Classification Port based; 802.1p(PCP) VLAN priority based;
Rate Limiting Ingress policer;egress shaping and rate control;per
VLAN,per port and flow based
Management(Web/ SSL, Telnet/ SSH, ping, Trivial File Transfer Protocol (TFTP), SNMP, Syslog)
Web GUI inter- face Built-in switch configuration utility for browser- based device configuration (HTTP/ HTTPs). Supports configuration, system dashboard, maintenance, and monitoring
Dual Image Dual image provides independent primary and
secondary OS files for backup while upgrading
Firmware
upgrade
Web browser upgrade (HTTP/ HTTPs) and
TFTP; Upgrade through console port as well
Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
Other manage- ment Single IP management; HTTP/HTTPs; SSH; RADIUS; DHCP Client; SNTP; cable diagnostics; ping; syslog;
Telnet client (SSH secure support)
Green Ethernet
Green and Energy-saving Ethernet (EEE) Compliant IEEE802.3az Energy Efficient Ethernet Task Force. Automatically turns off power onGigabit Ethernet RJ-45 port when detecting link down or Idle of client. Active mode is resumed without loss of any
packets when the switch detects the link up
Cable length
detection
Adjusts the signal strength based on the cable length.
Reduces the power consumption for cables shorter.
General
Jumbo frames Frame sizes up to 9KB supported on Gigabit interfaces
MAC Table Up to 8K MAC addresses.
Discovery
Link Layer Discovery Protocol
(LLDP)
Used by network devices for advertising their identities, capabilities, and neighbors on a IEEE 802 local area network, principally wired Ethernet.
Minimum Requirements
Web brower Mozilla Firefox version 2.5 or later, Microsoft Internet
Explorer version 6 or later;
Cable Category 5 Ethernet network cable;
Other TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in network
Environmental  (preliminary)

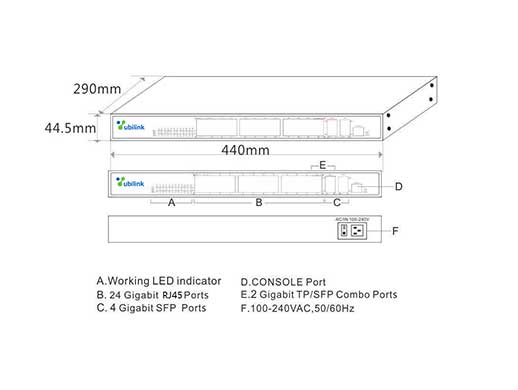

Dimensions 440x290x44.5mm
Working Environment Operating temperature: -20 to 55 ℃;
Storage temperature: -20℃ to 75 ℃;
Operating humidity: 10% to 90% , relative, non-condensing
Product Description 26-Port gigabit managed Ethernet switch,
22-Port 10/100/1000Base-T + 2x Combo ports+ 2x (100/1000M) SFP slots.
Total power is 35W
