Product Features
· The P3016-16POE-MLF4 is a gigabit L2+ managed PoE fiber switch. It has 16*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports. Port 1-16 can support IEEE802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 250W(at-400W).
| Model | P3016-16POE-MLF4 | P3016-16POE-MLF4-at |
| Interface Characteristics | ||
| Fixed Port | 16*10/100/1000Base-T PoE ports (Data/Power)
4*100/1000Base-X uplink SFP slot ports (Data) 1 * RS232 console port(115200,N,8,1) |
|
| Ethernet Port | Port 1-16 can support 10/100/1000Base-T(X)
auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
|
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
| SFP Slot Port | Gigabit SFP optical fiber interface, default
matching optical modules |
|
| Optical Cable | Multi mode: 850nm 0 ~ 550M,single mode: 1310nm
0 ~ 40KM, 1550nm 0 ~ 120KM. |
|
| Chip Parameter | ||
| Network Management Type | L2+ | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x |
|
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 192Gbps | |
| Forwarding Rate@64byte |
29.76Mpps | |
| MAC | 8K | |
| Buffer Memory | 4.1M | |
| Jumbo Frame | 10K | |
| CPU(Hz) | 500M | |
| DRAM | 1G | |
| Flash | 256M | |
| LED Indicator | Power: PWR (green), System : SYS (yellow), Network: Link
(yellow), Fiber port :L/A (green), PoE: PoE (green), Rate: Speed (green) |
|
| Reset Switch | Yes, One-button factory reset | |
| PoE & Power Supply | ||
| PoE Port | Port 1 to 16 IEEE802.3af/at @ POE | |
| PoE Management | PoE working status Delay start of power supply PoE output priority configuration Total power limit of PoE power supply Scheduling of PoE operation and time PoE output power allocation, off& af &at |
|
| Power Supply Pin | Default 1/2 (+), 3/6 (-) | |
| Max Power Per Port | 30W; IEEE802.3af/at | |
| Total
PWR / Input Voltage |
250W (AC100-240V) | 400W (AC100-240V) |
| Power Consumption | Standby<16W, Full Load<240W | Standby<20W, Full Load<380W |
| Power Supply | Built-in power supply, AC 100~240V 50-60Hz 4.1A |
Built-in power supply, AC
100~240V 50-60Hz 5.0A |
| Physical Parameter | ||
| Operation
TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing | |
| Storage
TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing | |

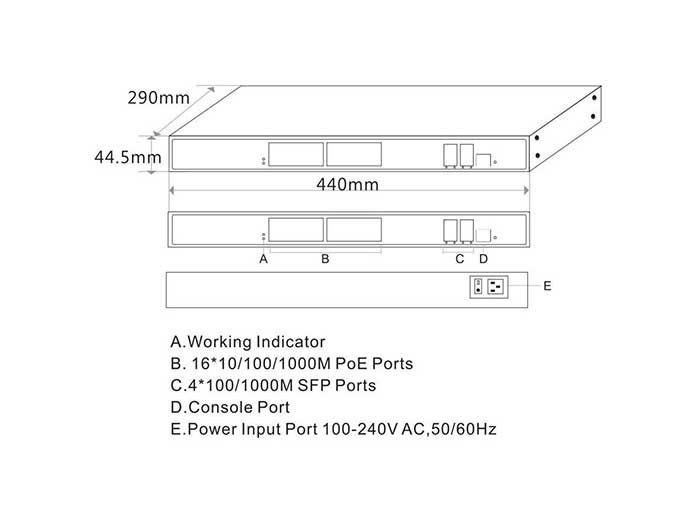

| Dimension (L*W*H) | 440*290*44.5mm | |
| Net /Gross Weight | <4.2kg / <4.7kg | <4.4kg / <5.0kg |
| Installation | Desktop, 19 inch 1U cabinet | |
| Certification & Warranty | ||
| Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP30 | |
| Certification | CCC,CE mark,
commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS |
|
| Warranty | 3 years, lifelong maintenance. | |
| Network Management Features | ||
| Interface | IEEE802.3X
(Full-duplex) Port temperature protection setting Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. |
|
| Layer 3 Features | L2+ Network
management, IPV4 management L3 soft routing forwarding, Static route, Default route @ 128 pcs, APR @ 1024 pcs |
|
| VLAN | 4K VLAN based on port,
IEEE802.1q Port configuration of Access, Trunk, Hybrid VLAN based on MAC, QinQ configuration, VLAN based on the protocol |
|
| Port Aggregation | LACP, Static
aggregation Max 9 aggregation groups and 8 ports per group. |
|
| Spanning Tree | STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s) | |
| Multicast | IGMP Snooping v1/v2,
Max 1024 multicast groups, Fast log out MLD Snooping v1/v2,Multicast VLAN |
|
| Port Mirroring | Bidirectional data mirroring based on port | |
| QoS | Diff-Serv QoS,Priority
Mark/Remark 8*Output queues of each port 802.1p/DSCP priority mapping Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Packet Filtering Flow-based Redirection Flow-based Rate Limiting |
|
| ACL | L2 to L4 packet
filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. Port-based Issuing ACL. ACL based on port and VLAN |
|
| Security | User hierarchical
management and password protection SSH 2.0,SSL,Port isolation,ARP message speed limit Broadcast storm control,Backup for host datum IEEE802.1X & MAC address authentication Mac black holes,IP source protection AAA & RADIUS,MAC learning limit ARP inspection,Anti-DoS attack IP-MAC-VLAN-Port binding |
|
| DHCP | DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay | |
| Management | Console/AUX
Modem/Telnet/SSH2.0 CLI Web Management (HTTPS) Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 One-key recovery NTP,System work log,Ping Test Cable Diagnose,LLDP CPU instant utilization status view NMS - Smart Network Management System Platform (LLDP+SNMP) |
|
| System | Web browser: Mozilla
Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; Category 5 Ethernet network cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
|
