네트워크 PoE 스위치 L2 PoE

P3016-16POE-MLF2

18-port Full Gigabit Managed Fiber PoE Switch

회원가
로그인하세요.

Product Features

· The P3016-16POE-MLF2 is a L2+ managed PoE fiber switch. It has 16*10/100/1000Base-T RJ45ports and 2*100/1000Base-X SFP fiber slot ports . Port 1-16 can support IEEE 802.3af/atstandard PoE power supply. single port PoE power reaches 30W, and the maximum PoE outputpower is 250W(at-400W).


Model  P3016-16POE-MLF2 P3016-16POE-MLF2-at
Interface Characteristics
Fixed Port  16*10/100/1000Base-T PoE ports (Data/Power)
2*100/1000Base-X uplink SFP slot ports 1 * RS232 console port(115200,N,8,1)
Ethernet Port  10/100/1000Base-T(X),auto-sensing,Full/half duplex MDI/MDI-X
self-adaption
Twisted Pair Transmission  10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)
SFP Slot Port  Gigabit SFP optical fiber interface, default matching optical modules
(optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable  Multi mode: 850nm 0 ~ 550M,
single mode: 1310nm 0 ~ 40KM, 1550nm
0 ~ 120KM.
Chip Parameter
Network Management Type  L2+
Network Protocol  IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode  Store and Forward(Full Wire Speed)
Switching Capacity  256Gbps (Non-blocking)
Forwarding
Rate@64byte 		 26.78Mpps
MAC  8K
Buffer Memory  6M
Jumbo Frame  9.6K
LED Indicator  Power: PWR (green), System : SYS (yellow), Network: Link (yellow),
Fiber port :L/A (green), PoE: PoE (green), Rate: Speed (green)
Reset Switch  Yes, One-button factory reset
PoE & Power Supply
PoE Port  Port 1 to 16 IEEE802.3af/at @ POE
PoE Management

Total power limit of PoE power supply
PoE output power allocation, off & af&at

PoE output priority configuration
PoE working status
Delay start of power supply

Scheduling of PoE operation and time
Power Supply Pin  Default 1/2 (+), 3/6 (-)
Max Power Per Port  30W; IEEE802.3af/at
Total PWR / Input
Voltage  		 250W (AC100-240V)  400W (AC100-240V)
Power Consumption  Standby<16W, Full Load<240W  Standby<20W, Full Load<380W
Power Supply

Built-in power supply,
AC 100~240V

50-60Hz 4.1A

 Built-in power supply,
AC 100~240V
50-60Hz 5.0A
Physical Parameter
Operation TEMP /
Humidity 		 -20~+55°C, 5%~90% RH Non condensing
Storage TEMP /
Humidity 		 -40~+75°C, 5%~95% RH Non condensing

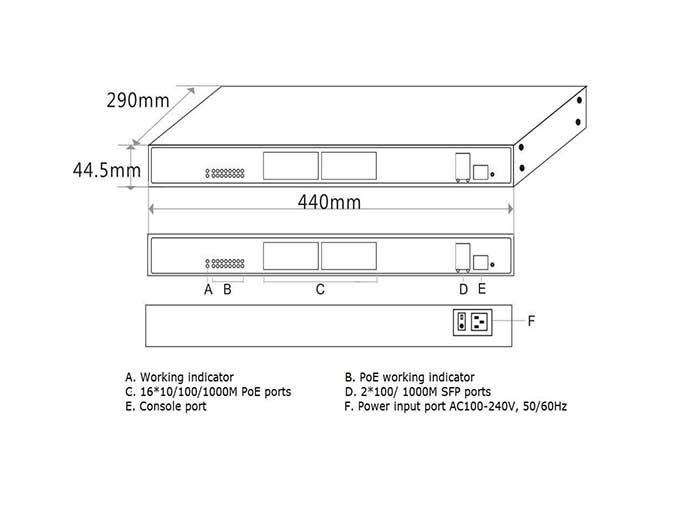

Dimension (L*W*H)  440*290*44.5mm
Net /Gross Weight  <4.2kg / <4.7kg  <4.4kg / <5.0kg
Installation  Desktop, 19 inch 1U cabinet
Certification & Warranty
Lightning protection / protection level  Lightning protection: 4KV 8/20us;
Protection level: IP30
Certification  CCC,CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B;
RoHS
Warranty  3 years, lifelong maintenance.
Network Management Features
Interface  IEEE802.3X (Full-duplex)
Port temperature protection setting
Port green Ethernet Energy-saving setting
Broadcast storm control based on port speed
The speed limit of the message flow in the access port.
The minimum particle size is 64Kbps.
Layer 3 Features  L3 routing and forwarding
L2+ network management,
IPV4/IPV6 management Static route,
Default route @ 128 pcs, APR @ 1024 pcs
Communication between different network segments and different VLANs
VLAN  4K VLAN based on port, IEEE802.1q
VLAN based on the protocol
VLAN based on MAC
Voice VLAN, QinQ configuration
Port configuration of Access, Trunk, Hybrid
Port Aggregation  LACP, Static aggregation
Max 9 aggregation groups and 8 ports per group.
Spanning Tree  STP (IEEE802.1d),
RSTP (IEEE802.1w),
MSTP (IEEE802.1s)
Industrial Ring  G.8032 (ERPS),Recovery time less than 20ms
Network Protocol  250 Ring at most, Max 254 devices per ring.
Multicast  MLD Snooping v1/v2,Multicast VLAN
Port Mirroring  Bidirectional data mirroring based on port
QoS  Flow-based Rate Limiting
Flow-based Packet Filtering
8*Output queues of each port
802.1p/DSCP priority mapping
Diff-Serv QoS,
Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL  Port-based Issuing ACL,
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.
Security  IP-MAC-VLAN-Port binding
ARP inspection,Anti-DoS attack
AAA & RADIUS,MAC learning limit
Mac black holes,IP source protection IEEE802.1X & MAC address authentication
Broadcast storm control,
Backup for host datum
SSH 2.0,SSL,Port isolation,
ARP message speed limit
User hierarchical management and password protection
DHCP  DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay
Management

One-key recovery
Cable Diagnose,LLDP
Web Management (HTTPS)
NTP,System work log, Ping Test

CPU instant utilization status view
Console/AUX Modem/Telnet/SSH2.0 CLI
Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP
V1/V2C/V3
NMS - smart network management system platform(LLDP+SNMP)
System  Category 5 Ethernet network cable
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later;
TCP/IP, network adapter, and network operating system
(such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network
