SKY 310-12x
SKY 310-12x

Video Conference TERMINAL ALL IN ONE Terminal

SKY 310-12x

All-In-One Video Conferencing Terminal

Member Price
Please login.

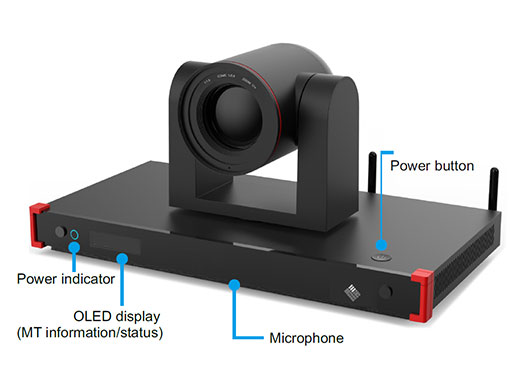

All-In-One design, Plug and Play

⋅Integrated codec, PTZ HD camera and mic

⋅USB configuration, easy to install, use and maintain

⋅Support TV / wall / upside-down mount

⋅Optional wireless casting transmitter, one press to cast the PC content on display or to remote conferencing

⋅ZigBee remote control, 360° control


Professional audio and video processing, High-end audio-visual experience

⋅12x optical zoom, 1080p HD video

⋅Excellent ISP algorithm, optimize the video effect especially under low illumination conditions

⋅Built-in mic, 6m audio pickup, AEC / ANS / AGC process, wideband audio protocol


Excellent network adaptability and security mechanism

⋅Supports H.265 protocol, consumes less bandwidth, 384Kbps to achieve 1080p resolution encoding and decoding

⋅Supports Intelligent Packet Loss Recovery, dynamic rate adjustment, automatic QoS setting, forward error correction and other network optimization mechanisms, which can fully optimize the video communication effect in the congestion network environment

⋅Standard H.460 for NAT and firewall traversal

⋅Multiple encryption mechanism: H.235 conference encryption, 256 bit AES encryption, TLS and SRTP protocol, User authentication and role-based authorization, etc.


Open, converged, High interoperability

⋅Standard H.323 / SIP, interoperable with standard endpoints and infrastructures from third-party mainstream vendors

⋅Provide API, implementing flexible integration with third-party platforms



　 SKY 310-12x
Sub Models 1080P30-12x
System Standards H.323, SIP
H.225, H.235, H239, H.245, H.281, H.460
Video Standards H.264, H.264 High Profile, H.265
Audio Standards G.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14TM, G.728, G.729, MPEG4-AAC (LC / LD), Opus
Network Protocols TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, PPPoE
IP Protocols IPv4 and IPv6 dual stack
Conference Bitrate 64Kbps ~ 8Mbps
Video Resolution Video:
1080p (1920 x 1080), 720p (1280 x 720), W4CIF (1024 x 576), 4CIF (704 x 576), WCIF (512 x 288), CIF (352 x 288)
Content:
1080p (1920 x 1080), 720p (1280 x 720), UXGA  (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768)
Encode Capacity 1080p30 + 1080p30
Decode Capacity 1080p60 + 1080p60
Built-in Camera  Optical zoom: 12x
Sensor: 1 / 2.8" CMOS, 2 MP
Horizontal view Angle: 72.5°
Pan range: ±170°
Tilt range: -90° ~ +50°, -90°  standby (Exclusive design)
Adjustable camera parameter
Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)
Video Features Single screen dual / triple-display
Adjustable video parameter
VGA  loopback when power off
Supports camera preset snapshot and preview
Audio Features Sampling frequency: 48 kHz
Acoustic Echo Cancellation (AEC)
Acoustic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Automatic lip synchronization
Mute and dumb
Dual-stream H.239 / BFCP
Adjustable bandwidth ratio
Wireless content sharing by SkyShare software or NexPresence transmitter
Network Features Embedded proxy for NAT / firewall transversal
Intelligent Packet Loss Recovery (IPLR)
Forward Error Correction (FEC)
DiffServ, IP Precedence (Quality of service [QOS])
IP conflict detection
Automatic PPPoE redial
Dynamic rate adjustment
OSD Caption / Logo / Banner Configurable OSD caption / logo / banner
Local images and custom text can be set as OSD logo / banner
OSD caption can be sent as short messages to endpoints or multipoint control units
OSD caption can be scrolled
Configurable OSD banner background color, font sizes and fonts
Security Features Embedded OS
H.235 conference encryption
256 bit AES encryption
TLS and SRTP protocol
Conference password authentication
User authentication and role-based authorization
Advanced setting authentication
Gateway password-protected
HTTPS
Physical privacy protection, camera turns -90° while standby (Exclusive design)
Management Methods Remote control
Web interface
OLED display screen on the device
Maintenance Functions Event logs can be managed
Factory settings restoration
Loop / image / audio tests
Real-time video / audio bitrate display
Address book and configuration file importing / exporting
Conference Functions Point-to-point / multiple conferences
Join-in conference / administrator / speaker / chime-in request
Calling by E.164 ID, alias and IP addresses
Video Interfaces Input: 1 x Built-in camera
1 x VGA, 1 x HDMI (dual stream, choose 1 from 2)
Output: 1 x VGAr, 1 x HDMI  (same output)
1 x HDMIl
Audio Interfaces Input: Built-in mic
1 x mini XLR, 1 x Digital mic, 1 x 3.5mm, 1 x wireless mic (-W model)
1 x HDMI support audio
Output: 1 x 3.5mm, 2 x HDMI support audio
Control Interfaces 1 x RS232
IR / ZigBee remote control
Network Interfaces 1 x 10 / 100 / 1000M Ethernet, RJ45 interface
Other Interfaces 1 x USB 2.0 (USB configuration, USB recording)
1 x FXO
1 x TOUCH
Environmental Operating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 90%
Atmospheric pressure: 70 ~ 106 kPa
Electrical Power: DC 12V
Power consumption: Max. 48W
Mechanical Net weight: 3.87kg / 8.53lb
Package weight: 8.5kg / 18.74lb
Endpoint dimensions: 195 x 375 x 205mm / 7.68" x 14.76" x 8.07"
Package dimensions: 350 x 515 x 365mm / 13.78" x 20.28" x 14.37"
