SKY D510
SKY D510

Video Conference TERMINAL ALL IN ONE Terminal

SKY D510

All-In-One Hardware Desktop Video Conferencing Terminal

Member Price
Please login.

Truly All-In-One design, Plug and Play

· Integrated codec, PTZ HD camera, mic, speaker and 27 touch screen, only need network and power

· Suitable for high-end government office desktops, small meeting rooms, duty rooms, remote visiting rooms, etc.

· A multi-purpose machine, it can be used as a display, also support connect with external display, dual display.

· OPS PC is optional. Multiple modes switch with one click.


Professional audio and video processing, High-end audio-visual experience

· 90° horizontal view angle, 3x digital zoom, 1080p HD video

· Excellent ISP algorithm, adjustable video parameter

· Built-in mic, 3m audio pickup, AEC / ANS / AGC process, wideband audio protocol

· Built-in Wi-Fi client (optional), flexible networking mode


Excellent network adaptability and security mechanism

· Supports H.265 protocol, it takes up less bandwidth, the minimum bandwidth 384Kbps to achieve 1080p resolution encoding and decoding

· Supports intelligent anti-packet loss, dynamic rate adjustment, automatic QoS setting, forward error correction and other network optimization mechanisms, which can fully optimize the video communication effect in the congestion network environment

· Standard H.460 for NAT and firewall traversal

· Multiple encryption mechanism: H.235 conference encryption, 256 bit AES encryption, TLS and SRTP protocol, User authentication, etc.


Open, converged, High interoperability

· Standard H.323 / SIP, interoperable with standard endpoints and infrastructures from third-party mainstream vendors


  SKY D510

Sub Models  1080P30-W
System Standards  H.323, SIP
H.225, H.235, H239, H.245, H.281, H.460
Video Standards  H.264, H.264 High Profile, H.265
Audio Standards  G.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14TM, G.728, G.729, MPEG4-AAC (LC / LD), MP3, Opus
Network Protocols  TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP,
PPPoE, 802.11a/b/g/n/ac
IP Protocols  IPv4 and IPv6 dual stack
Conference Bitrate  64Kbps ~ 8Mbps
Video Resolution  Video:
1080p (1920 x 1080), 720p (1280 x 720), W4CIF (1024 x 576), 4CIF (704 x 576), WCIF (512 x 288), CIF (352 x 288)
Content:
1080p (1920 x 1080), 720p (1280 x 720), UXGA (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024),
WXGA (1280 x 800), XGA (1024 x 768)
Encode Capacity  1080p30 + 1080p30
Decode Capacity  1080p60 + 1080p60
Built-in Camera  Main camera Digital zoom: 3x
Sensor: 1 / 2.8" CMOS, 2 MP
Horizontal view Angle: 90°
Manual PT
Pan range: ±45°
Tilt range: -15° ~ +25°
Adjustable camera parameter
Video Features  Single screen dual / triple-display
Dual screen dual display (support connect to external display) Adjustable video parameter
Audio Features  Sampling frequency: 48 kHz Acoustic Echo Cancellation (AEC) Acoustic Noise Suppression (ANS) Automatic Gain Control (AGC) Automatic lip synchronization Mute and dumb
Dual-stream  H.239 / BFCP
OPS PC can be used as dual stream source
Wireless content sharing by SkyShare software
Network Features  Embedded proxy for NAT / firewall transversal Intelligent Packet Loss Recovery (IPLR) Forward Error Correction (FEC)
DiffServ, IP Precedence (Quality of service [QOS])
IP conflict detection Automatic PPPoE redial Dynamic rate adjustment
OSD Caption / Logo / Banner  Configurable OSD logo / banner
Custom text can be set as OSD logo / banner
OSD banner can be scrolled
Configurable OSD banner background color
Security Features  Embedded OS
H.235 conference encryption 256 bit AES encryption
TLS and SRTP protocol
Conference password authentication OSD password lock
Gateway password-protected
HTTPS
Camera physical privacy protection switch
Management Methods  Touch screen
Web interface
Maintenance Functions  Event logs can be managed
Loop / image / audio tests
Real-time video / audio bitrate display Configuration file importing / exporting
Conference Functions  Point-to-point / multiple conferences
Join-in meeting / chairman / speaker / chime-in request
Calling by E.164 ID, alias and IP addresses

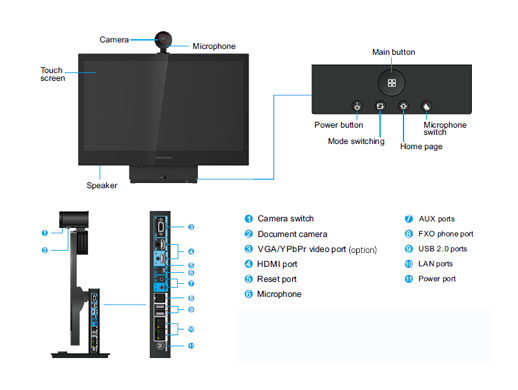

Video Interfaces  Input: 1 x Built-in main camera Output: 1 x HDMI
OPS PC is optional
Audio Interfaces  Input: Built-in mic, 1 x Digital mic, 1 x 3.5mm
Output: Built-in speaker, 1 x 3.5mm, 1 x HDMI support audio
Network Interfaces  2 x 10 / 100 / 1000M Ethernet, RJ45 interface Built-in WIFI client
Other Interfaces  2 x USB 2.0 (USB configuration, USB recording)
1 x FXO
1 x Reset
Environmental  Operating temperature: 0°C ~ 45°C / 32 ~ 113
Operating humidity: 10% ~ 90%
Atmospheric pressure: 53 ~ 106 kPa
Electrical  Power: DC 19V
Power consumption: Max. 85W
Mechanical  Net weight: 17.5kg / 38.58lb Package weight: 20kg / 44.09lb
Terminal dimensions: 586 x 644.8 x 228mm / 23.07" x 25.39" x 8.98"
Package dimensions: 700 x 868 x 450mm / 27.56" x 34.17" x 17.72"
