IPC442-Ui405-NP 제품대표이미지
IPC442-Ui405-NP 상세이미지 1

영상보안 지능형 제품 지능형 카메라

IPC442-Ui405-NP

4.0MP 미니 울트라 WDR & 스타라이트 스피드 돔 카메라

회원가
로그인하세요.

뛰어난 이미지 품질

· 4.0 메가픽셀 1/1.8' 프로그레시브 스캔 CMOS 센서

· 고화질과 매끄러운 사진, 1920 x 1080@30fps

· H.265 비디오 코덱, 대역폭 및 스토리지 최대 50% 절감

· 초저조도, 컬러사진 포함 0.001 Lux

· IR자동 조정

· 3D 노이즈 감소 / HLC / BLC


지능형 기능

· 움직임감지/변조감/가드라인/가드라인/가드구역 진입/가드구역 출구/방치감지/군중집합감지/ 소리 감지


긴 작동 수명

· -40°C~70°C의 작동 온도에서 사용가능한 산업용 부품

· IP66, TVS 6000V 번개 보호, 서지 보호 및 전압 과도 보호


인식 기능

· 대상 캡처

· 양방향 인원수 계산

· 기본 제공 사진 비교 알고리즘, 최상의 사진 선택


풍부한 기능 및 기능

· Micro SD 카드, 자동 네트워크 보충(ANR) 지원

· 최대 3개의 멀티스트림

· 양방향 오디오/알람 입력 및 출력

· 내장형 O센서

· PoE

· IP66

  IPC442-Ui405-NP
Camera
Image Sensor  1/1.8’’ progressive scan CMOS
Pixels 4.0 Megapixel
Min. Illumination  Color: 0.0002Lux @ (F1.5, AGC ON)
B/W: 0.0001lux @ (F1.5, AGC ON); 0lux with IR
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Digital WDR
S/N Ratio >58dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Lens
Focal Length 2.7 ~ 13.5mm, 5x optical, 16x digital
Zoom Speed Approx 3s (Optical)
Angle of View 108.1°~ 46.6° (Wide~Tele)
Min. Object Distance 10 ~ 1500mm (Wide~Tele)
Max. Aperture Ratio F1.5 ~ F2.7
Focus Control Auto / Manual / Semi-Automatic
Infrared
IR Distance 30m
IR Intensity Automatically adjust according to zoom ratio
Pan and Tilt
Pan / Tilt Range 360° Endless / 0° ~ 90° (Auto Flip)
Pan / Tilt Speed Pan manual speed: 0.1˚~180˚/s
Tilt manual speed: 0.1˚~120˚/s
Preset  512
Patrol 8 Patrols scheme, up to 32 presets per patrol
Power-off Memory Power-off memory / Power-on recovery
Auto Guard Path / Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan
PT Limit Manual / Scan / Pan
3D Positioning  PTZ control with mouse click and drag
Electronic compass Built-in O-sensor
Video
Compression H.265 / H.264
Image Resolution Main stream: 1080p
Secondary stream: D1
Frame Rate Main stream: 1080p@25fps
Secondary stream: D1@25fps
Bitrate 32~16384Kbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Electronic Defog Supported
Image Flip Flip / Mirror
Audio
Compression G.711a / G.711u / ADPCM / G.722 / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Recognitive Functions
Target Detection Person, Face
Captured Picture Person, Face
Built-in picture comparison algorithm, best picture selection
Target Tracking Support to tracking by face
People Counting Bi-directional
Alarm
Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet 10/100M, RJ45 interface
Control 1 x RS485
Audio In / Out 1 x Line in / 1 x Line out
Alarm In / Out 2 x Input / 1 x Output
Video Out 1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot SD card, supports up to 256GB
Environmental
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity  10% ~ 95%
Protection Level IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Electrical
Power  12V DC ± 10% (Power Adapter Not Included) / PoE (802.3at)
Power Consumption Max. 30W (IR on)
Mechanical
Weight  2 kg / 4.4lb (Gross Weight)

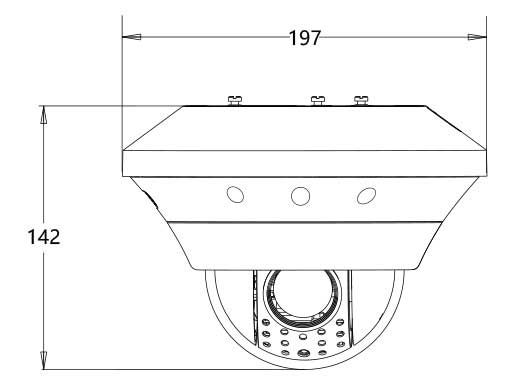

Dimensions Φ197 × 142mm / Φ7.76" × 5.59"
