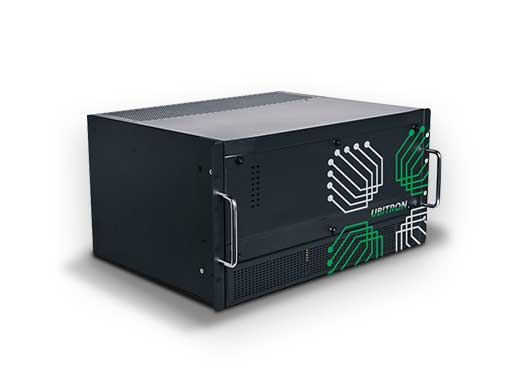

UMC7000-N 제품대표이미지

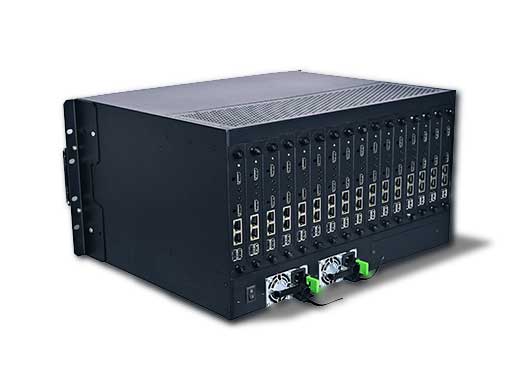

UMC7000-N 상세이미지 1
UMC7000-N 상세이미지 2

시각화 플랫폼 디스플레이 IPWALL 컨트롤러

UMC7000-N

Network Matrix with 16ch HDMI output

회원가
로그인하세요.

Product Features

· Support network media input ；

· Support multiple resolution of output, it can manually set output resolution；

· Output supports maximum 3840x2160@60Hz；

· Support 4K, 1080P, 1080I, 720P, D1 video formats；

· H265/H264 compatible；

· Every output card support 2ch 4K or 16ch 1080P or 32ch 720P decoding and display；

· Support video-splitting output, up to 64 windows split on one monitor ；

· Support Cruise, Plan, split, splicing, etc. display mode；

· Support Plan configuration and management；

· Optimize video，it can make video stream smooth and improve network jammed .

· Support intelligent connection；

· Support audio input and output

· Support alarm linkage action and contact closure output；

· Support OSD, title, time and warning messages can overlap on the displayed video；

· Support multiple label program, can configure label position freely；

Model UMC7000
Module or Interface
Input   opitional to have input card
Output   16ch HDMI output
Ethernet  100M/1000M self adaptive
Audio input  8ch，by Ф3.5 audio interface
Audio output  8ch，by Ф3.5 audio interface
Alarm output  support network alarm input
USB2.0   support
RS232/422/485   support
Video
Network video decoding H.265,H.264
Network video input 4K, 1080P,1080I,720P,D1
HDMI ouput resolution 1024×768P@60hz,1280×720P@60hz,1366×768P@60hz,1920×1080P@60hz,3840×2160@60hz
Video decode and display 2ch 4K or 16ch 1080P or 32ch 720P or 64ch D1 per card
Monitor splicing  4 monitor to splice and display one video
Split maximum 64 split,1/4/6/8/9/10/16/25/36/64 splitting mode and display，or split by user-define.
OSD   Window, Channel,label, alarm, etc. information
Audio
Audio Codec  G.711,G.726,ADPCM encode/decode
On/Mute Supports all channels and single channel set individually
Audio input 8ch audio encode, it can open/close audio input.
Management and Maintenance
Basic applications maximum 72 users online at same time
users permission definition；video switch and control
Cruise, patrol, split,etc. display mode management, Plan configuration and call.
Management & Configuration  PETNET protocol available, third party Net client or platform can configure and manage this matrix on users operation permission definition & management
Maintenance system log , System status detection,Fault detection and report, support online updating
Initialization set it can configure accordingly.
Other
time synchronization interior RTC, it could time automatic sync. in cascading .
PENET or standard port, to keep sync. to time server inside the system.
Alarm   network alarm input, alarm action to call video display
Alarm process manual or automatic
Power supply AC100 to 230
Consumption ≤160W
Working temp. 0～45℃
Working humidity 10%～90%
Weight gross/net weight: 10.0kgs/8.0kgs
Dimension carton size: 620.0mm(L)×520.0mm(W)×230.0mm(H)
product size:480.0mm(L)×423.5mm(W)×128.0mm(H)
