UFG2259

출입통제 BARRIER 게이트 플립형

Swing Turnstile

High-speed swing turnstile is designed for high speed for pedestrian pass entrance. The brushless motor or servo

motor is optional. It integrates mechanical, electronic, micro CPU and various ID technology, such as IC card, ID card,

bar code, fingerprinting code, face reader, etc. Besides, the reliable and secure protection device ,alarm component

and direction guidance make turnstile become smart pedestrian system.

Model	UFG2259
Specification
Caninet Material	Standard SU 304 stainless metal, metal top cover thickness 1.5mm, body thickness 1.2mm
Drive Voltage	AC220V±10%，50HZ/60HZ
Motor Type	DC24V direct brush motor

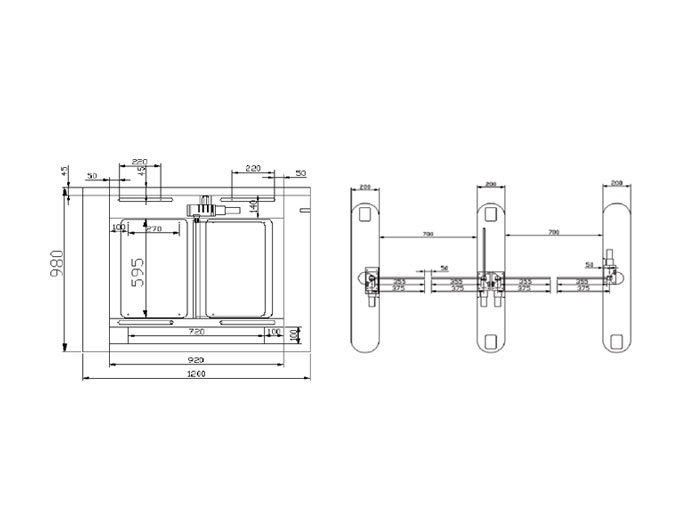

Outline Dimension	1200mm(L)200MM(W)980MM(H)
Flap Wing Length	300mm-375mm
Optional Pass Width	600mm-800mm
Pass Direction	Single or dual
Response Time	1s
Pass Speed	40 persons/minute(open), 25-30 persons/minute(close)
Communication Port	RS485, distance ≤1200m
Input Port	Relay command signagel or
	12V level signal or
	pluse width signal ＞100ms
	12 Vpluse signal, drive current ＞10MA
MTBF	5 Million cycles
