IPC183-UFi9N |
| Camera |
| Image Sensor |
1/1.8’’
Progressive Scan CMOS |
| Pixels |
8.0
Megapixel |
| Min. Illumination |
Color:
0.005Lux @ (F1.2, AGC ON) |
| B/W: 0.0005Lux @ (F1.2, AGC ON) |
| Shutter Speed |
1
~ 1/30,000s |
| Day / Night |
Auto
(ICR) / Color / B/W |
| Wide Dynamic Range |
Ultra
WDR, >=120dB |
| S/N Ratio |
>52dB |
| White Balance |
Auto
/ Manual |
| Gain Control |
Auto
/ Manual |
| Backlight Compensation |
Off
/ WDR / BLC / HLC |
| Lens (not included) |
| Mount Type |
C
/ CS |
| Auto Iris |
DC
drive / P-Iris |
| Video |
| Compression |
H.265
/ H.264 / MJPEG |
| Image Resolution |
Main
stream: 4K (4096×2160) |
| Secondary stream: D1 |
| Frame Rate |
Main
stream: 4K@30fps / 1080p@60fps |
| Secondary stream: D1@30fps |
| Bitrate |
64kbps
~ 32Mbps |
| Bitrate Control |
VBR
/ CBR |
| Multi-stream |
Supported |
| Caption |
Date
and time / Alarm / Direction / Customized |
| Privacy Masking |
Up
to 4 zones |
| Motion Detection |
Up
to 4 zones |
| Video Freeze |
Supported |
| ROI |
Supported |
| Digital Noise Reduction |
3D
noise reduction |
| Digital Defog |
Supported |
| Image Flip |
Flip
/ Mirror / Rotation at 90°,180°,270° / Auto flip (Built-in G-sensor) |
| Audio |
| Compression |
G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726 |
| Bitrate |
32kbps
~ 64kbps |
| Audio Function |
Bi-directional
audio / AEC / Mixed audio recording / Dumb / Mute |
| Network |
| Network Protocols |
TCP/IP,
UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x,
NAT, QoS, SMTP, IPv4, IPv6 (optional) |
| User Interface |
IPC
Control (IE, Firefox, Chrome) |
| Max. User Access |
Max.
10 Users (includes 2 internal) |
| Application Programming |
ONVIF
(Profile S, Profile G), GB/T 28181-2011, API, CGI |
| Automatic Network Replenishment (ANR) |
Supported |
| Recognitive Functions |
| Target Detection |
Face |
| Captured Picture |
Face |
| Alarm |
| Alarm Triggers |
Alarm
input / Network disconnect / Disk full / Disk error |
| Intelligent |
Motion
detection / Tampering / Guard line / Defocus / Scene change / Enter guard
area / Exit guard area / Object left / Object removal / Gathering / Audio
surge |
| Alarm Events |
Alarm
report / Recording / Text overlay / Snapshot / External output / Email notice
/ Acoustic alarm |

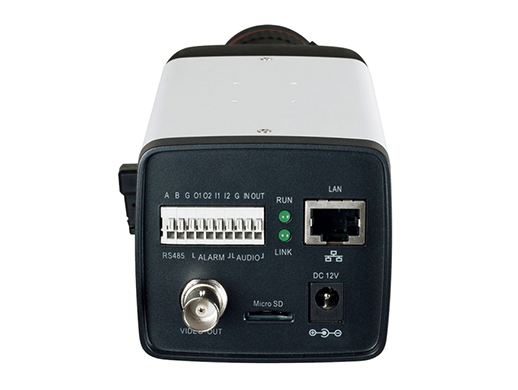

| Interfaces |
| Ethernet |
10/100M,
RJ45 interface |
| Audio In / Out |
2
x Line in / 1 x Line out / 1 x Built-in Mic |
| Control |
1
x RS485 |
| Alarm In / Out |
1
x Input / 1 x Output |
| Video Out |
1
x BNC, 1.0V [p-p] / 75Ω |
| Memory Slot |
Micro
SD card slot, supports up to 256GB |
| Environmental |
| Operating Temperature |
-40°C
~ 70°C / -40°F ~ 158°F |
| Operating Humidity |
10%
~ 95% |
| Electrical |
| Power |
AC
24V ± 10% / DC 12V ± 10% / PoE (IEEE802.3af) |
| Power Consumption |
Max.
6W |
| Mechanical |
| Weight |
0.5
kg / 1.1lb (Gross Weight) |

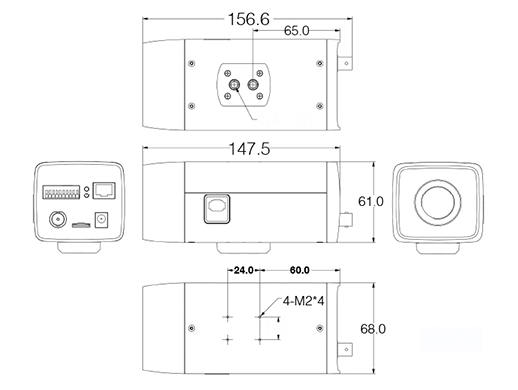

| Dimensions |
147.5
x 68 x 61mm / 5.81’’ x 2.68’’ x 2.40’’ |
