출입통제 출입통제 장비 얼굴 출입리더기

USCA120-AI-FC

Access Control Device combined with Face Recognition & Card Reader

구매수량
회원가
로그인하세요.

Excellent Image Quality

· 2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor

· High definition and smooth picture, 1080p@30fps

· 0.001lux,ultra low illumination

· 4mm ultra wide angle dual-lens


Recognitive Functions

· Built-in deep learning face recognition algorithm

· Support face anti-spoofing

· Face intelligence exposure


Flexible Access Control

· Support Face Recogintion \ Card \ Face Recognition and Card \ Face Recognition or Card \ Face Rcognition and Fever Screening \ Remote Control

· Support up to 20,000 face library, up to 100,000 card capacity and

· 1,000,000 event records


Abundant Functions and Features

· 5” Capacitive touchscreen

· Micro SD card slot, supports Automatic Network Replenishment (ANR)

· Built-in Mic and speaker / Bi-directional audio / alarm in&out / RS485 / exit button / lock NO NC / door contact / tamper button


　 USCA120-AI-FC
Camera
Image Sensor  2 x 1/2.8’’ Progressive Scan CMOS
Pixels 2.0 Megapixel
Min. Illumination  Color: 0.001lux
Focal Length 4mm dual-lens
Compression H.265 / H.264
Image Resolution 1080p@30fps
Bitrate 32kbps ~ 32Mbps
Audio
Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Display
Size 5”
Type LCD
Resolution 480 x 800
Operation Method Capacitive touchscreen
Screen Hardness >= 6H
Access Control
Card Reader IC / M1 / CPU card
Card Capacity 100,000
Face Detection Comparison Library 20,000
Unlock Mode Face Recogintion \ Card \ Face Recognition and Card \ Face Recognition or Card \ Remote Control
Envent Capacity 1,000,000
1:N Face Recognition Supported
Face Recognition Duration (1:N) <= 0.5s
Accuracy Rate >= 99%
Face Detection Distance 0.3 ~ 2m
Face Anti-Spoofing Supported
Face Exposure Supported
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6
Wi-Fi 802.11 b/g/n 2.4G
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Interfaces
Ethernet 10/100M, RJ45 interface
Audio In / Out 1 x Built-in Mic, 1 x Speaker
Control 1x RS485, 1 x Exit button, 1 x Lock NO / NC, 1 x Door contact, 1 x Tamper
Alarm In / Out 2 x Input / 1 x Output
Memory Slot Micro SD card slot, supports up to 256GB
Environmental
Operating Temperature -40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity  10% ~ 95%
Protection Level IP66
Electrical
Power  12V DC ± 10%
Power Consumption Max. 20W
Mechanical
Weight  1.8kg / 3.97lb (Gross Weight)

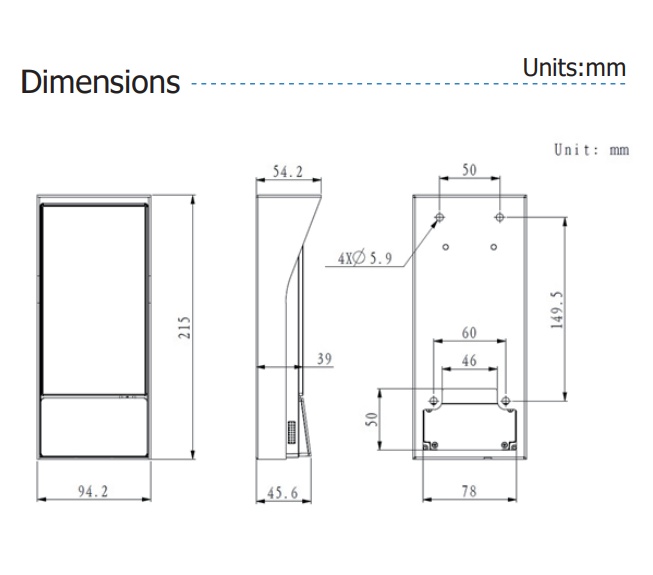

Dimensions 215 x 94.2 x 54.2mm / 8.46’’ x 3.71’’ x 2.13’’
