| Model |
UBVT-CD900 |
UBVT-CD500 |
UBVT-CD300 |
| Image Sensor |
| Pixel Pitch |
9M |
5M |
3M |
| Resolution |
4096x2160@30fps |
2448
x 2048@30fps |
2048
x1536@50fps |
| Sensor Size |
1
inch |
1
inch |
1/1.8” |
| Lowest Luminance |
0.005 |
0.001 |
0.003 |
| Sensor |
Global
Shutter CMOS |
| Image Ratio |
4:03 |
| Lens Port Type |
CS/C |
| System
Performance |
| Platform |
Linux
System |
| Image Output Format |
JPEG
compression output, Embedded Algorithm with YUV Format |
| Streaming Compression |
H.265/H.264/MJPEG/support
2K （2048 x 1080）/1080P/720P/D1 optional
setting, max.10 channels input |
| Image Transmission |
FTP/network
server uploading, |
| Image Setting |
saturability
/ sharpness/contrast/smart DNR/WDR |
| Image Control |
auto
white balance/OSD superposition/signal synchronization |
| Storage |
SD(2/4/8/16/32/64/128GB) |
| Function |
RTC
/WDT |
| Embedded Algorithm |
Standard
Korea plate number recognition algorithm, support video trigger, I/O
trigger, RS485 trigger. |
| The detection max. speed ≤ 200km/h, Recognition Accuracy ≥ 99% |
| Motorized
Lens |
| Sensor Size |
1” |
| Focal Length Range |
12~36(±5%)mm |
| M.O.D |
2.5m |
| IR Correction |
Yes |
| IR-CUT |
Auto
switch Day/Night IR-CUT |

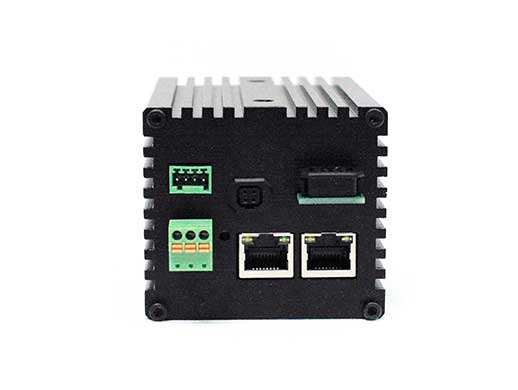

| Connection
Interface |
| Opto-isolator Input |
1ch
,external trigger |
| Opto-isolator Output |
1ch,
backlight synchronous control, alarm output(optional) |
| RS485 |
1ch,
connect alarm sensor, loopcoil sensor, etc. |
| Network Port |
2
gigabit ethernet ports (customized network segment without any
interruption) |
| Network Protocol |
TCP/IP、DHCP、UPnP、FTP、SMTP、RTP、HTTP、UDP、ONVIF,etc. |
| Other
Technical Parameter |
| Power Supply Input |
12VDC±20% |
| Max. Reboot Current |
＜1A |
| Power Consumption |
＜8W |
| Working Temperature |
﹣30℃～+75℃ |
| Working Humidity |
＜95%(no condensation) |
| Protection Grade |
IP66 |
| Dimension |
215mm×71mm×57mm |
