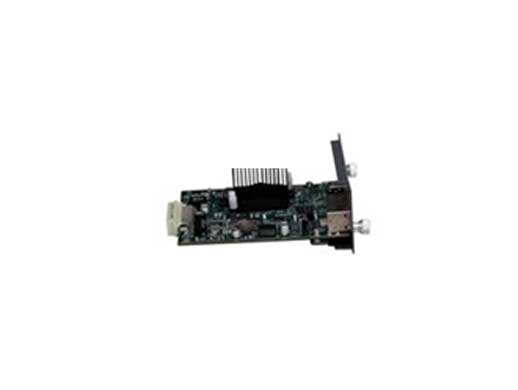

UMC6000 HDMI OUTOUT CARD_2Ports 제품대표이미지
UMC6000 HDMI OUTOUT CARD_2Ports 상세이미지 1

시각화 플랫폼 디스플레이 IPWALL 컨트롤러

UMC6000 HDMI OUTOUT CARD_2Ports

IP WALL CONTROLLER

구매수량
회원가
로그인하세요.

2 ports HDMI INPUT CARD , DVI Adapter Optonal,Max 3840×2160@60Hz    2560×1600@60Hz,Support HDCP

ModelUMC6000-N1
DVI Input  Card
Port Type DVI-I
Per Card Port Quantity  4 Channels
Maximum Resolution 1920×1200@60Hz
Adaptable Signal Type VGA/DVI/HDMI(Adapter)
Digital Protection Support HDCP
IP Decoding Input Card
Port Type RJ-45 1G
Max Resolution 4K
Decoding Capacity 1 CH 4K,4 CH Pixel-to-Pixel 1080Pl,16 CH Compressed 1080P ,32 CH 720P.
Supported Protocol ONVIF,RTSP
Decoding Format H.264,H.265
4K HDMI  Input Card
Port Type HDMI
Per Card Port Quantity 4 channels
Maximum Resolution 3840×2160@30Hz, 2560 x 1600@60Hz
FHD HDMI Input Card
Port Type HDMI
Per Card Port Quantity 8 channels
Max. Resolution 1920 x 1200 @60HZ
Digital Projection HDCP
Video Input Card
Port Type BNC
Video Format PAL/NTSC
Per Card Port Quantity 4 Channels
Max. Resolution PAL:720 x 576@25fps/s, NTSC: 720 x 478@ 30fps/s
Fiber Input Card
Port Type LC ( configure input node)
Per Card Port Quantity 4 Channels
Data Capacity 40Gbps
Max. Distance 10KM
DVI Output  Card
Port Type  DVI-D
Max. Resolution 1920*1200@60Hz(customize)
Per Card Port Quantity 4 channel
HDMI Output Card
Port Type  HDMI
Per Card Port Quantity 8 Channels
Max. Resolution 1920 x 1200 @60 HZ
DP Output Card
Port Type DP
Per Card Port Quantity  2 Channels
Max. Resolution 3840 x 2160 @ 30 HZ
General
Control System Windows/Android
Network Protocol TCP/IP
2U Chassis TBD
4U Chassis 482(W)×178(H)×300(D)(mm)/ 11kg (Full Card)/10 Slots
7U Chassis 482(W)×311(H)×300(D)(mm)/ 20kg (Full Card)/20 Slots
13U Chassis 482(W)×577(H)×300(D)(mm/ 38kg (Full Card)/40Slots
Power Voltage 100-240V, AC 5A,50/60HZ
Power Consumption  ≤480W,Redundant
Redundant Power Optional
Operating Humidity 10 %~90%, no-condensing
Running Temperature 0°C~40°C
Storage Temperature -20°C-70°C
Attitude Up to 5000m
