IPC2241-UGi4NG-SIR15

2.0MP Human Recognitive HD Network Mini IR Semi Dome

구매수량
회원가
로그인하세요.

Excellent Image Quality

· 2.0 Megapixel 1/2.8’’ progressive scan CMOS sensor

· High definition and smooth picture, 1080p@30fps

· H.265 video codec, saves up to 50% bandwidth and storage

· Ultra low illumination, 0.002lux with color picture

· WDR / HLC / 3D noise reduction


Recognitive Functions

· Embedded Linux

· Up to 36 targets simultaneously

· Target capturing and characters recognizing

· Built-in picture comparison algorithm, best picture selection


Integrated High Efficiency IR

· Industrial IR LED with long operational lifespan

· 15m IR distance

· Smart IR function


Abundant functions and features

· Micro SD card slot, supports Automatic Network Replenishment (ANR)

· Bi-directional audio / Built-in Mic / alarm in and out / RS485

· Wi-Fi supported

· 3G / 4G supported (-UGi4WG only)

· Dual-stream (1080p + D1)

· Anti-fog glass

· EN50155

· PoE

· IK10

· IP67





IPC2241-UGi4NG-SIR15

Camera
Image Sensor  1/2.8’’ progressive scan CMOS
Pixels 2.0 Megapixel
Min. Illumination  Color: 0.002lux @ (F2.0, AGC ON)
B/W: 0.0002lux @ (F2.0, AGC ON);
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >58dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Lens
Mount Type M12
Focal Length 3.6mm (-L0360) / 6mm (-L0600)
Angle of View 78.6° (-L0360) / 53.2° (-L0600)
Adjustment Range Pan: -45° ~ 45° / Tilt: 0° ~ 90° / Rotation: 0° ~ 360°
Infrared
IR Distance 15m
IR Intensity Smart IR
Video
Compression Smart H.265 / H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p
Secondary stream: D1
Frame Rate Main stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate 32kbps ~ 8Mbps
Bitrate Control VBR / CBR
Dual-stream Supported
Caption Date and time / Alarm / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
ROI Supported
Digital Noise Reduction 3D noise reduction
Image Flip Flip / Mirror
Audio
Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Wireless Wi-Fi
Wi-Fi 802.11b/g/n 2.4G, Wi-Fi AP
3G / 4G Frequency Band

FDD-LTE: B1 / B3 / B5 / B8
TDD-LTE: B38 / B39 / B40 / B41
WCDMA: B1 / B8
GSM / GPRS / EDGE: 900 / 1800MHz
TD-SCDMA: B34 / B39
EVDO/CDMA: BC0

Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Recognitive Functions
Target Detection Person, Face
up to
36 targets simultaneously
Captured Picture Person, Face, Full view
Built-in picture comparison algorithm, best picture selection
Target Characters Direction / Speed level
Alarm
Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet    /
Wi-Fi Built-in Wi-Fi module
GPS Build-in GPS module
3G / 4G Frequency Band Build-in 3G / 4G module
Audio In / Out 1 x Line in / 1 x Line out / 1 x Built-in Mic
Control 1 x RS485
Alarm In / Out 2 x Input / 1 x Output
Memory Slot Micro SD card slot, supports up to 256GB
Environmental
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity  10% ~ 95%
Protection level IK10, IP67, EN50155
Electrical
Power  12V DC ± 25% / PoE (IEEE802.3af)
Power Consumption Max. 14W
Mechanical
Weight  0.5 kg / 1.1lb (Gross Weight)

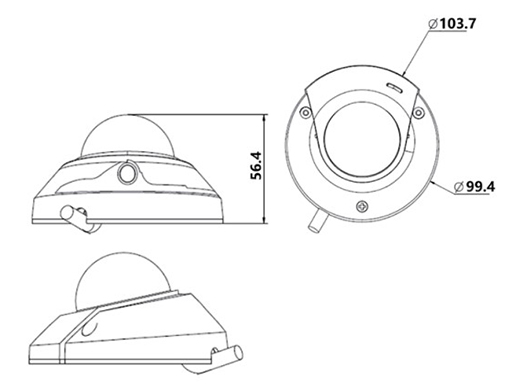

Dimensions Φ103.7 × 56.4mm / Φ4.08’’ x 2.22’’
