IPA102

영상보안 기타 네트워크 스토리지

Network Video Adapter

구매수량

Mini size

0.2kg / 0.54lb

120 x 64 x 24mm / 4.72’’ x 2.52’’ x 0.94’’

Easy to install

Built-in Web Server, easy to manage and configure

Abundant functions and features

H.264 high profile video codec, saves up to 30% bandwidth and storage

Dual-stream

TF card slot, supports Automatic Network Replenishment (ANR)

Bi-directional audio / alarm in and out / RS485

	IPA102
Video
Compression	H.264
Image Resolution	D1, CIF, QCIF
Frame Rate	1 ~ 25fps
Bitrate	64kbps ~ 4Mbps
Audio
Compression	G.711 / ADPCM
Bitrate	32kbps ~ 64kbps
Network
Network Protocols	TCP/IP, ARP, ICMP, FTP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, NTP, SNMP
User Interface	Web
Interfaces
Ethernet	10/100M, RJ45 interface
Audio In / Out	1 x Line in / 1 x Line out
Control	1 x RS485
Alarm In / Out	1 x Input / 1 x Output
Video In	1 x BNC
Memory Slot	Micro SD card slot
Environmental
Operating Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity	10% ~ 90%
Electrical
Power	12V DC
Power Consumption	Max. 4W
Mechanical
Weight	0.2kg / 0.54lb (Gross Weight)

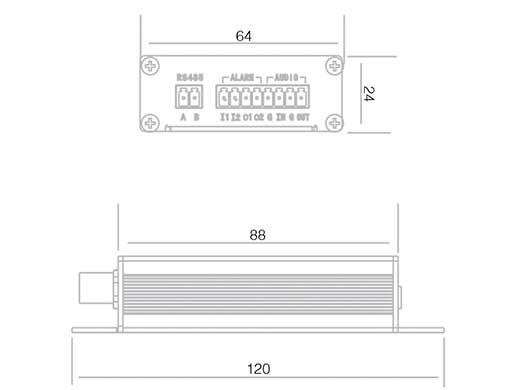

Dimensions	120 x 64 x 24mm / 4.72’’ x 2.52’’ x 0.94’’
