Falcon Human
Recognition System |

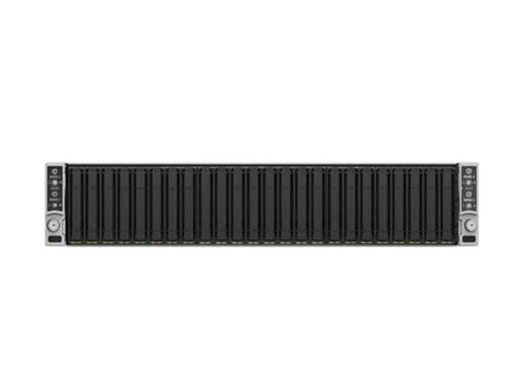

| KProServer3 CPU Server |
| CPU Server Chassis |
High
density server chassis
19" 2U standard blade rack server chassis, able to insert 4 computing
nodes, each computing node configuration 6 slot of 3.5 inch / 2.5 inch
compatible hard drive slot, a total of 24 hard disk slot can be placed
Include 2 unit of 2150W redundant platinum power supply |
| Computing Nodes |
Computing
Nodes for KProServer3-B01
2 x Intel Xeon Silver 4110 (8 core, 16 thread, up to 3.0GHz, 11MB Cache),
32GB RAM (KProServer3-N100-E01-32G)
/ 64GB RAM KProServer3-N100-E01-64G) / 128GB RAM (KProServer3-N100-E02-128G)
1 x 2.4TB SAS, 1x 960GB SSD, 2 x SFP
OS license not included |
| Functions |
Compares
the attributes of each face
Calculates the similarity percentage between faces |
| Operating Temperature |
10°C
~ 40°C / 50°F ~ 104°F |
| Operating Humidity |
50%
~ 90% |
| Power |
100
~ 127V AC, 50 ~ 60Hz / 200 ~ 240V AC, 50 ~ 60Hz |
| Power Consumption |
Max.
2150W (4 computing nodes included) |
| Weight |
38kg
/ 83.78lb (including 4 x nodes) |
| Chassis Dimensions |
733
x 438 x 86.9mm / 28.86’’ x 17.24’’ x 3.42’’ |
| DeepEngine-1000 GPU Server |
| GPU Server Chassis |
High
density server chassis
19" 4U standard blade rack server chassis, able to insert 6 computing
nodes
Include 4 unit of 1200W redundant platinum power supply |
| Computing Nodes |
Computing Nodes for DeepEngine-1000
1 x 64 bit multi-core CPU, 2 x GPU, 32GB RAM
2 x 1000M RJ45, 240GB SSD
OS license not included |
| Functions |
Identifies
the faces and persons in the video streaming
Grabs the attributes of each face and person |
| Operating Temperature |
0°C
~ 40°C / 32°F ~ 104°F |
| Operating Humidity |
50%
~ 90% |
| Power |
100
~ 127V AC, 50 ~ 60Hz / 200 ~ 240V AC, 50 ~ 60Hz |
| Power Consumption |
Max.
3000W (6 computing nodes included) |
| Weight |
58kg
/ 127.87lb (including 6 x nodes) |
| Chassis Dimensions |
820
x 440 x 177.8mm / 32.28’’ x 17.32’’ x 7’’ |
| System |
| Supported Operating System |
Windows10
Professional 64-bit / Windows 10 Enterprise 64-bit
Windows 7 Professional 64-bit / Windows 7 Enterprise 64-bit / Windows 7
Ultimate 64-bit
Windows Server 2008 / Windows Server 2012 |
| Database |
Elastic
Search |
| Application System |
Falcon
Human Recognition System |
| User Management |
Admin
/ User |
| Maximum Number Of Camera / Video Stream Access |
Up
to 500,000 |
| Face / Human Detection Comparison Library |
Up
to 10,000,000 |
| Camera Access Type |
Kedacom
human recognitive camera
Kedacom standard IPC (by Kedacom VMS)
Third-party IPC (by Kedacom VMS and NVR)
RTSP Video Stream (Optional) |
| Storage |
Face and human pictures (By
IPSAN) |
| Recognitive Functions |
| Target Detection |
Identifies
the faces and persons in the video streaming |
| Captured Picture |
Person,
Face, Full view |
| Face Matching |
Real-time
/ Post-event |
| Analysis |
Analyzes
attributes of human and face image, grabs the gender, age group, with or
without glasses and mask, color of clothes, texture of clothes, direction,
speed level |
| Search Mode |
Date
and time / Camera / Face image / Person image / Attributes (gender, age
group, with or without glasses and mask, color of clothes, texture of
clothes, direction, speed level) |
| People Counting |
Bi-directional |
| Alarm |
| Alarm Triggers |
Face
matching |
| Alarm Events |
Alarm
report / Snapshot / Acoustic alarm |
| Video |
| Compression |
H.265
/ H.264 |
| Live View |
1080p@30fps |
| Network |
| Network Protocols |
TCP/IP,
UDP, RTSP, VSIP, 802.1x, IPv4 |
| User Interface |
EPAS
Client |
