IPC123-UFi4N

2.0MP Human Recognitive HD Network Box Camera

구매수량
회원가
로그인하세요.
Excellent Image Quality
  • 2.0 Megapixel 1/2’’ progressive scan CMOS sensor
  • High definition and smooth picture, 1080p@60fps
  • H.265 video codec, saves up to 50% bandwidth and storage
  • Ultra low illumination, 0.0005lux with color picture
  • 120dB Ultra WDR
  • 3D noise reduction / HLC / BLC

Intelligent Functions
  • Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge

Recognitive Functions
  • Up to 36 targets simultaneously
  • Target capturing and characters recognizing
  • Bi-directional people counting
  • Built-in picture comparison algorithm, best picture selection
  • Face Intelligence Exposure

A Variety of Installation Modes
  • Supports 90°, 180°, 270° image rotation
  • Auto flip function

Abundant Functions and Features
  • Micro SD card slot, supports Automatic Network Replenishment (ANR)
  • Up to 3 Multi-stream
  • Bi-directional audio / alarm in and out / video out / RS485
  • 2 channel audio input simultaneously
  • Built-in Mic
  • Built-in O-sensor
  • PoE


  IPC123-UFi4N
Camera
Image Sensor  1/2’’ Progressive Scan CMOS
Pixels 2.0 Megapixel
Min. Illumination  Color: 0.0005Lux @ (F1.2, AGC ON)
B/W: 0.0001Lux @ (F1.2, AGC ON)
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >52dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Lens (not included)
Mount Type C / CS
Auto Iris DC drive / P-Iris
Video
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p
Secondary stream: D1
Frame Rate Main stream: 1080p@60fps
Secondary stream: D1@30fps
Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror / Rotation at 90°,180°,270° / Auto flip (Built-in G-sensor)
Audio
Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Recognitive Functions
Target Detection Person, Face
up to 36 targets simultaneously
Captured Picture Person, Face, Full view
Built-in picture comparison algorithm, best picture selection
Target Characters Direction / Speed level
People Counting Bi-directional
Face Enhancement Face Intelligence Exposure
Alarm
Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm

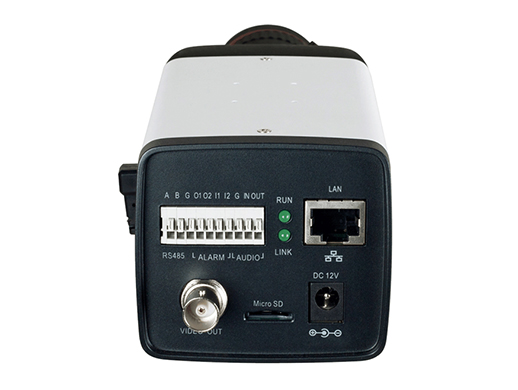

Interfaces
Ethernet 10/100M, RJ45 interface
Audio In / Out 2 x Line in / 1 x Line out / 1 x Built-in Mic
Control 1 x RS485
Alarm In / Out 1 x Input / 1 x Output
Video Out 1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot Micro SD card slot, supports up to 256GB
Environmental
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity  10% ~ 95%
Electrical
Power  AC 24V ± 10% / DC 12V ± 10% / PoE (IEEE802.3af)
Power Consumption Max. 6W
Mechanical
Weight  0.5 kg / 1.1lb (Gross Weight)

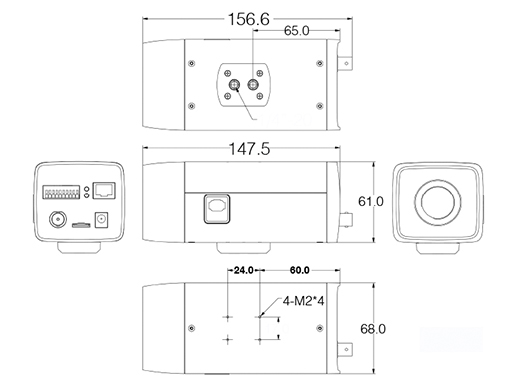

Dimensions 147.5 x 68 x 61mm / 5.81’’ x 2.68’’  x 2.40’’
