IPC2655-UGi7N

6.0MP Recognitive HD Network Varifocal Bullet Camera

구매수량
회원가
로그인하세요.

Excellent Image Quality

· 6.0 Megapixel 1/1.8’’ Progressive Scan CMOS Sensor

· High definition and smooth picture, 3072 x 2048@30fps

· WDR / HLC / 3D noise reduction


Recognitive Functions

· Human Silhouette and Vehicle capturing

· Built-in picture comparison algorithm, best picture selection

· Target capturing and characters recognizing


Abundant Functions and Features

· Micro SD card slot, supports Automatic Network Replenishment (ANR)

· Bi-directional audio / alarm in&out / RS485

· -40°C ~ 60°C operation temperature

·  IP66


  IPC2655-UGi7N
Camera
Image Sensor  1/1.8’’ Progressive Scan CMOS
Pixels 6.0 Megapixel
Min. Illumination  Color: 0.01Lux @ (F1.4, AGC ON)
B/W: 0.001Lux @ (F1.4, AGC ON)
Shutter Speed 1/7.5 ~ 1/16,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Digital WDR
S/N Ratio 52dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Lens
Auto Iris DC drive
Focal Length 15 ~ 50mm @ F1.4 motorized varifocal lens
Focus Control Manual / Semi-Automatic / Auto
Night View
White LED Distance 20m ~ 30m
Video
Compression H.265 / H.264
Image Resolution Main stream: 3072 x 2048
Secondary stream: D1
Frame Rate Main stream: 3072 x 2048@30fps
Secondary stream: D1@30fps
Bitrate 32kbps ~ 16Mbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Direction / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
Digital Noise Reduction 3D noise reduction
Image Flip Flip / Mirror
Audio
Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming Onvif (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Recognitive Functions
Target Detection Human silhouette, Vehicle
Captured Picture Human silhouette, Vehicle
Built-in picture comparison algorithm, best picture selection
Alarm
Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet 10/100M, RJ45 interface
GPS Build-in GPS module
Audio In / Out 2 x Line in / 1 x Line out
Control 1 x RS485
Alarm In / Out 2 x Input / 1 x Output
Memory Slot Micro SD card slot, supports up to 128GB
Environmental
Operating Temperature -40°C ~ 60°C / -40°F ~ 140°F
Operating Humidity  10% ~ 95%
Protection Level IP66
Electrical
Power  AC 24V ± 10%
Power Consumption Max. 36W
Mechanical
Weight  2.8kg / 6.17lb (Gross Weight)

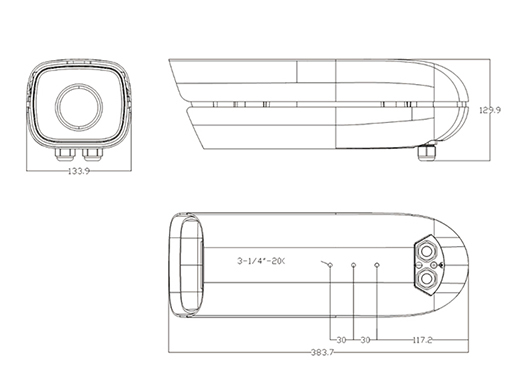

Dimensions 383 x 129.9 x 133mm / 15.05’’ x 5.11’’ x 5.24’’
