IPC2431-UGi4N

4.0MP Human Recognitive HD Network Varifocal IR Semi Dome

구매수량
회원가
로그인하세요.

Excellent Image Quality

· 4.0 Megapixel 1/1.8'' progressive scan CMOS sensor

· High definition and smooth picture, 2560×1440@30fps

· H.265 video codec, saves up to 50% bandwidth and storage

· Ultra low illumination, 0.002lux with color picture

·WDR support / 3D noise reduction / HLC


Intelligent Functions

· Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge


Recognitive Functions

· Up to 100 targets simultaneously

· Target capturing and characters recognizing

· Bi-directional people counting

· Built-in picture comparison algorithm, best picture selection

· Face Intelligence Exposure


Vandal-proof

· Above IK10 @ 50J collision energy


Integrated High Efficiency IR

· Industrial IR LED with long operational lifespan

· 30 ~ 50m IR distance

· Smart IR function


A Variety of Installation Modes

· Varifocal AF lens


Abundant functions and features

· Micro SD card slot, supports Automatic Network Replenishment (ANR)

· Bi-directional audio / alarm in&out / RS485

· Up to 3 Multi-stream

· PoE

· IP66



  IPC2431-UGi4N
Camera
Image Sensor  1/1.8’’ progressive scan CMOS
Pixels 4.0 Megapixel
Min. Illumination  Color: 0.002lux @ (F1.6, AGC ON)
B/W: 0.0002lux @ (F1.6, AGC ON);
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120dB
S/N Ratio >52dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / BLC / WDR / HLC
Lens
Mount Type Φ14
Auto Iris DC drive
Focal Length -Z71030: 10~30mm @ F1.6 motorized varifocal lens
Focus Control Manual / Semi-Automatic / Auto
Angle of View 108° ~ 35°
Adjustment Range Pan: 0° ~ 355° / Tilt: 0° ~ 75° / Rotation: 0° ~ 355°
Infrared
IR Distance 30 ~ 50m
IR Intensity Smart IR
Video
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 2560×1440
Secondary stream: D1
Frame Rate Main stream: 2560×1440@30fps
Secondary stream: D1@30fps
Bitrate 32kbps ~ 32Mbps
Bitrate Control VBR / CBR
Multi-stream Supported
Caption Date and time / Alarm / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
Video Freeze Supported
Digital Noise Reduction 3D noise reduction
Image Flip Flip / Mirror / Rotation at 90°,180°,270°
Audio
Compression G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
Bitrate 32kbps ~ 64kbps
Audio Function Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 20 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Recognitive Functions
Target Detection Person, Face
up to 100 targets simultaneously
Captured Picture Person, Face, Full view
Built-in picture comparison algorithm, best picture selection
Target Characters Direction / Speed level
People Counting Bi-directional
Face Enhancement Face Intelligence Exposure
Alarm
Alarm Triggers Alarm input / Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm Events Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet 10/100M/1000M, RJ45 interface
Audio In / Out 2 x Line in / 1 x Line out
Control 1 x RS485
Alarm In / Out 2 x Input / 1 x Output
Memory Slot Micro SD card slot, supports up to 256GB
Environmental
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity  10% ~ 95%
Protection Level IK10+ @50J, IP66
Electrical
Power  DC12V ± 10% / PoE (IEEE802.3at)
Power Consumption Max. 20W
Mechanical
Weight  1 kg / 2.2lb (Gross Weight)

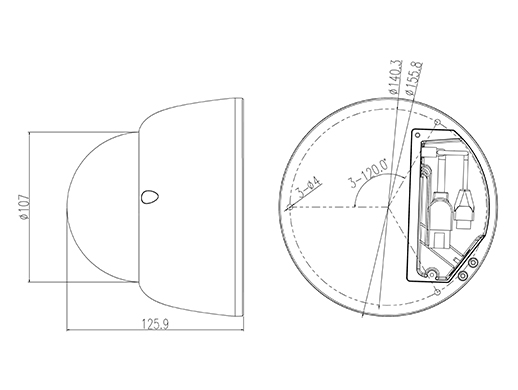

Dimensions Φ155.8 × 125.9mm / Φ6.14’’ x 4.96’’
