VS200G |
| General |
| Disk Interface |
SATA:
1TB, 2TB, 3TB, 4TB, 6TB |
| RAID |
RAID0,1,5,6,10,
RAID X |
| HDD Hot-swap |
Supported |
| Max. Internal HDDs |
16
x 3.5’’ HDD |
| Max. 96TB (up to 6TB/each) |
| Storage Management |
| Recording rate |
500Mbps |
| Disk management: |
S.M.A.R.T.
(Self-Monitoring, Analysis and Reporting) |
| Device Management |
| Management |
Web-based
GUI, Multiple units management |
| Alarm |
Sound,
LED, Email, GUI Warning |
| Network |
| Network Protocols |
TCP/IP,
UDP, HTTP, FTP, IPv4, iSCSI, NAS, NRU |
| Trunk |
Supported |
| Interfaces |
| Ethernet |
3
x Gigabit network port, RJ45 interface |
| Output |
VGA
output for debugging |
| USB |
2
x USB3.0, for keyboard or user data backup |
| Environmental |
| Operating Temperature |
10°C
~ 35°C / 50°F ~ 95°F |
| Operating Humidity |
10%
~ 90% |
| Electrical |
| Power |
100
~ 240V AC, 50 ~ 60Hz |
| Redundant Power Supply |
| Power Consumption |
Max.
216W (HDD not included) |
| Mechanical |
| Weight |
Approx.20kg
(HDD not included, redundant power supply) |

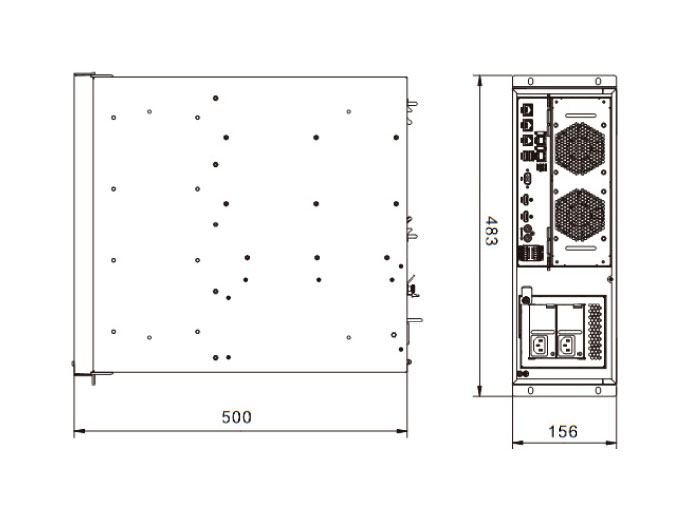

| Dimensions |
156
x 483 x 500mm / 6.14’’ x 19.02’’ x 19.69’’ |
