IPC445-UF233-N |
| Camera |
| Image Sensor |
1/1.8’’
progressive scan CMOS |
| Pixels |
4.0
Megapixel |
| Min. Illumination |
Color:
0.0005lux @ (F1.5, AGC ON) |
| B/W: 0.0001lux @ (F1.5, AGC ON); 0lux with IR |
| Shutter Speed |
1
~ 1/30,000s |
| Day / Night |
Auto
(ICR) / Color / B/W |
| Wide Dynamic Range |
Ultra
WDR, >=120dB |
| S/N Ratio |
>=55dB |
| White Balance |
Auto
/ Manual |
| Gain Control |
Auto
/ Manual |
| Backlight Compensation |
Off
/ WDR / BLC / HLC |
| Lens |
| Focal Length |
4.5
~ 148.5mm, 33x optical |
| Zoom Speed |
Approx
3s (Optical) |
| Angle of View |
70°~
3.8° (Wide~Tele) |
| Min. Object Distance |
300
~ 1500mm (Wide~Tele) |
| Max. Aperture Ratio |
F1.5
(Wide) / F3.4 (Tele) |
| Focus Control |
Auto
/ Manual / Semi-Automatic |
| Infrared |
| IR LED |
9
pcs IR LED Array |
| IR Distance |
180
~ 220m |
| IR Intensity |
Automatically
adjust according to zoom ratio |
| Pan and Tilt |
| Pan / Tilt Range |
360°
Endless / -20° ~ 90° (Auto Flip) |
| Pan / Tilt Speed |
Pan
manual speed: 0.1° ~ 240°/s; Pan preset speed: 300°/s |
| Tilt manual speed: 0.1° ~ 160°/s; Tilt preset
speed: 240°/s |
| Proportional Zoom |
Pan
/ Tilt speed can be adjusted automatically according to zoom multiples |
| Preset |
512 |
| Patrol |
8
Patrols scheme, up to 32 presets per patrol |
| Pattern Scan |
4
Scan paths, each path can record 10 minutes of operation path |
| Power-off Memory |
Power-off
memory / Power-on recovery |
| Auto Guard |
Path
/ Preset / Mixed / Pan scan / Tilt scan / Frame scan / Random scan / Panorama
scan |
| PT Limit |
Manual
/ Scan / Pan |
| 3D Positioning |
PTZ
control with mouse click and drag |
| Electronic compass |
Built-in
O-sensor |
| Video |
| Compression |
H.265
/ H.264 / MJPEG |
| Image Resolution |
Main
stream: 2560 x 1440 |
| Secondary stream: D1 |
| Frame Rate |
Main
stream: 2560 x 1440@30fps, 1080p@30fps |
| Secondary stream: D1@30fps |
| Bitrate |
32kbps
~ 16Mbps |
| Bitrate Control |
VBR
/ CBR |
| Multi-stream |
Supported |
| Caption |
Date
and time / Alarm / Direction / Customized |
| Privacy Masking |
Up
to 4 zones |
| Motion Detection |
Up
to 4 zones |
| Video Freeze |
Supported |
| ROI |
Supported |
| Digital Noise Reduction |
3D
noise reduction |
| Digital Defog |
Supported |
| Image Flip |
Flip
/ Mirror |
| Audio |
| Compression |
G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726 |
| Bitrate |
32kbps
~ 64kbps |
| Audio Function |
Bi-directional
audio / AEC / Mixed audio recording / Dumb / Mute |
| Network |
| Network Protocols |
TCP/IP,
UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x,
NAT, QoS, SMTP, IPv4, IPv6 (optional) |
| User Interface |
IPC
Control (IE, Firefox, Chrome) |
| Max. User Access |
Max.
20 Users (includes 2 internal) |
| Application Programming |
ONVIF
(Profile S, Profile G), GB/T 28181-2011, API, CGI |
| Automatic Network Replenishment (ANR) |
Supported |
| Recognitive Functions |
| Target Detection |
Face |
| Captured Picture |
Face |
| Alarm |
| Alarm Triggers |
Alarm
input / Network disconnect / Disk full / Disk error |
| Intelligent |
Motion
detection / Tampering / Guard line / Enter guard area / Exit guard area /
Object left / Object removal / Gathering / Audio surge |
| Alarm Events |
Alarm
report / Recording / Text overlay / Snapshot / External output / Email notice
/ Acoustic alarm |
| Interfaces |
| Ethernet |
10/100M,
RJ45 interface |
| Audio In / Out |
1
x Line in / 1 x Line out |
| Control |
1
x RS485 |
| Alarm In / Out |
4
x Input / 2 x Output |
| Video Out |
1
x BNC, 1.0V [p-p] / 75Ω |
| Memory Slot |
SD
card slot, supports up to 256GB |
| Environmental |
| Operating Temperature |
-40°C
~ 70°C / -40°F ~ 158°F |
| Operating Humidity |
10%
~ 95% |
| Protection Level |
IP66, TVS 6000V
lightning protection, surge protection and voltage transient protection |
| Electrical |
| Power |
24V
AC / 3A (Power adapter included) |
| Power Consumption |
Max.
45W (IR on) |
| Mechanical |
| Weight |
8
kg / 17.6lb (Gross Weight) |

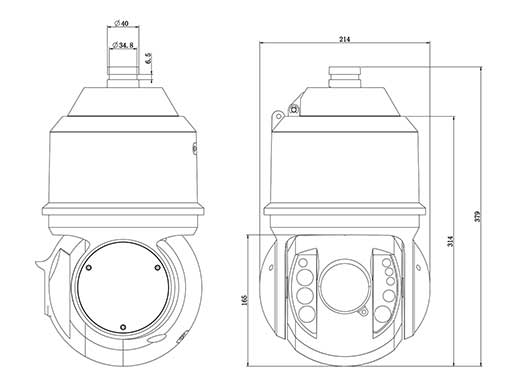

| Dimensions |
Φ214×
379mm / Φ8.43’’ x 14.92’’ |
