IPC2433-UHN-SIR40-Z2712

영상보안 IPC 제품 Semi Dome 카메라

4.0MP HD Network Vandal-Proof Varifocal IR Semi Dome

구매수량

회원가: 로그인하세요.

첨부파일 다운로드

IPC2433-HN-SIR40.pdf

확장자 :

pdf

파일크기 :

547KB

다운로드

Excellent Image Quality

· 4.0 Megapixel 1/3.0'' progressive scan CMOS sensor

· High definition and smooth picture, 2592×1520@20fps

· H.265 video codec, saves up to 50% bandwidth and storage

· Low illumination, 0.05lux with color picture

· WDR / 3D noise reduction / Auto Iris / HLC

Intelligent Functions

· Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge /

Vandal-Proof

· Above IK10 @ 50J collision energy

Integrated High Efficiency IR

· Industrial IR LED with long operational lifespan

· 20 ~ 40m IR distance

· Smart IR function

A Variety of Installation Modes

· Supports 90°, 180°, 270° image rotation

· Motorized varifocal lens

Abundant Functions and Features

· Micro SD card slot, supports Automatic Network Replenishment (ANR)

· Bi-directional audio / alarm in and out / video out / RS485

· 2 channel audio input simultaneously

· Up to 3 Multi-stream

· PoE

· IP67

	IPC2433-HN-SIR40
Camera
Image Sensor	1/3’’ progressive scan CMOS
Pixels	4.0 Megapixel
Min. Illumination	Color: 0.05lux@ (F1.6, AGC ON)
Min. Illumination	B/W: 0lux with IR
Shutter Speed	1 ~ 1/30,000s
Day / Night	Auto (ICR) / Color / B/W
Wide Dynamic Range	Digital WDR
S/N Ratio	>50dB
White Balance	Auto / Manual
Gain Control	Auto / Manual
Backlight Compensation	Off / BLC / WDR / HLC
Lens
Mount Type	Φ14
Auto Iris	DC drive
Focal Length	-Z2712: 2.7~12mm @ F1.6 motorized varifocal lens
Focus Control	Manual / Semi-Automatic / Auto
Angle of View	-Z2712: 106° ~ 33°
Adjustment Range	Pan: -120° ~ +120° / Tilt: 0° ~ 65° / Rotation: -90° ~ +90°
Infrared
IR Distance	20 ~ 40m
IR Intensity	Smart IR
Video
Compression	H.265 / H.264 / MJPEG
Image Resolution	Main stream: 2592×1520
Image Resolution	Secondary stream: D1
Frame Rate	Main stream: 2592×1520@20fps, 2048×1520@25fps, 1080p@30fps
Frame Rate	Secondary stream: D1@30fps
Bitrate	32kbps ~ 16Mbps
Bitrate Control	VBR / CBR
Multi-stream	Supported
Caption	Date and time / Alarm / Customized
Privacy Masking	Up to 4 zones
Motion Detection	Up to 4 zones
Video Freeze	Supported
ROI	Supported
Digital Noise Reduction	3D noise reduction
Digital Defog	Supported
Image Flip	Flip / Mirror / Rotation at 90°,180°,270°
Audio
Compression	G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726
Bitrate	32kbps ~ 64kbps
Audio Function	Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols	TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, IGMP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface	IPC Control (IE, Firefox, Chrome)
Max. User Access	Max. 10 Users (includes 2 internal)
Application Programming	ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)	Supported
Alarm
Alarm Triggers	Alarm input / Network disconnect / Disk full / Disk error
Intelligent	Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm Events	Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet	10/100M, RJ45 interface
Audio In / Out	2 x Line in / 1 x Line out
Control	1 x RS485
Alarm In / Out	1 x Input / 1 x Output
Video Out	1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot	Micro SD card slot, supports up to 128GB
Environmental
Operating Temperature	-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity	10% ~ 95%
Protection Level	IK10+ @50J, IP67
Electrical
Power	DC12V ± 10% / PoE (IEEE802.3af)
Power Consumption	Max. 11W
Mechanical
Weight	0.71 kg / 1.57lb (Gross Weight)

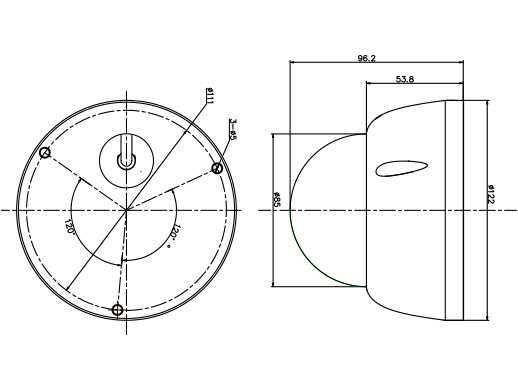

Dimensions	Φ122× 96.13mm / Φ4.8’’ x 3.78’’
