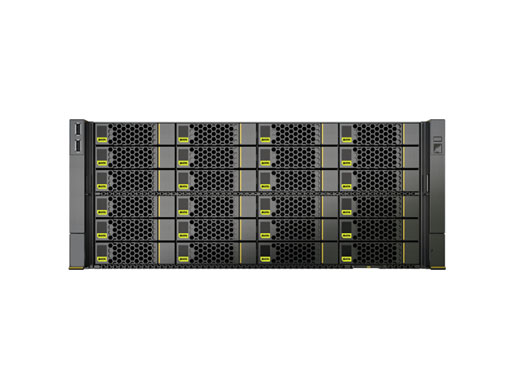

U-CloudStor3601-F-288T

영상보안 스토리지

회원가: 로그인하세요.

첨부파일 다운로드

Specification

U-CloudStor3601-F-288T.pdf

확장자 :

pdf

파일크기 :

1.30MB

다운로드

Product Features

⋅Massive storage capacity: 4U 36 disks, each device supports 6T, 8T or larger disk capacity, smooth expansion of storage nodes;

⋅Dual 10-Gigabit ports: Provide dual-plane 10-Gigabit network ports for high-performance read/write and load balancing;

⋅Extremely high system performance: The write performance of a single device is not less than 8Gbps, and the system performance increases linearly with the system capacity;

⋅Reliable data protection: Erasure code redundancy protection mode, when multiple disks or storage nodes are damaged, there is no data loss;

⋅Rich access interfaces: Provide API, S3 and other access interfaces;

	U-CloudStor3601-F-288T
Model
Processor	2 * Intel 10 core 20 threads ,main frequency 2.4GHz 32M cache
RAM	128GB，up to 16 RAM slots
Hard disK	4T/6T/8T 3.5'' Enterprise HDD
Quantities	36 slots
Interface	SATA,SAS TLC SSD, SAS, NL-SAS
Protocol	iSCSI, NFS, FTP
Network	2×10GE SFP+
Network	2×1000Base-T
Power	AC100~240V，50~60HZ，1200W 1+1 Redundant power supply,Supports hot swapping
Size	432 (W) × 172 (H) × 699 (L) （mm）
Weight	67kg ± 5%(including 36 HDDs)
environment	0~35℃
U-CloudStor3601-F-288T Features
Service	Management Node, Data node,Video Recording, forward Video stream
System specifications	10GB network performance, single device can provide 8Gbps data write capacity.
	3 or more control node clusters;support 1000 nodes and more than hundreds PB storage space
	Both the hard disk and storage nodes support online horizontal expansion, and load balancing is achieved between storage nodes. When batch failures occur, business is not interrupted and data self-healing is achieved;
	Supports over 1000 storage nodes, hundreds of PB of storage capacity, and can flexibly partition up to 100000 virtual quota storage resource pools；
	Automatic load balancing, aggregation bandwidth linearly increases with the number of nodes;
	Without relying on switch characteristics,, realizing network redundancy and load balancing;
	The space utilization rate can be flexibly configured and defaults to no less than 80%;
	The N+M redundant backup or replica method based on erasure code data blocks between storage data nodes ensures that data is not lost and business is not interrupted when multiple hard drives or nodes are damaged;
	Apable of self-healing data, able to recover data from a 6T hard drive within 1 hour;
	Battery protection technology can protect system cache data from loss;
Storage function	Unified namespace,discrete storage of data blocks,concurrent support for read and write operations across multiple storage devices;
Storage function	High performance storage of various data types such as massive video streams, images, files, etc；
Easy maintenance	Visualization cluster configuration management interface;
	One click upgrade ；
	Status monitoring, including monitoring of the overall system and the operational status of each node
	Performance monitoring, including read and write performance, network bandwidth, etc;
	Resource monitoring, supporting dynamic tracking of system resources;
	Web、Alarm management ；
	System logs；
Client	B/S，support Windows/Linux/MAC OS；
	Support NFS，S3，API of network interface access
	Max support 100000 clients
