| Model |

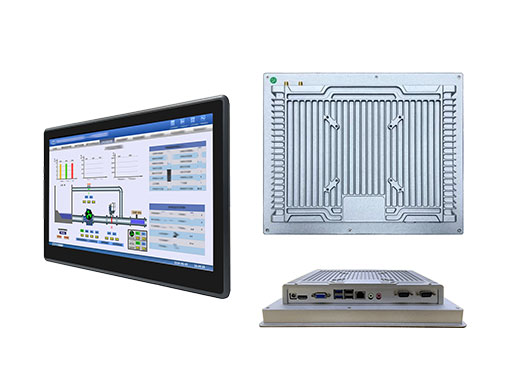

Panel PC |
| Appearance |
| Form |
Industrial
computer, supports embedded, VESA cantilever, wall-mounted and desktop |
| Material |
Aluminum
alloy |
| Color |
Black/silver |
| Button |
*1 |
| Fan |
none |
| 15inch |
| Screen |
15
inch4:3，1024x768，250 cd/m²，10-point capacitive touch screen |
| Product Size/Weight |
375x299x59.5mm
/3.12kg |
| Package Size/Weight |
450*350*118mm/4.17kg |
| System hardware configuration |
| CPU |
Intel®
i5-3317U 2 cores 4 threads 1.7 GHz up to 2.6GHz |
| GPU |
Intel
HD Graphics 4000 |
| RAM |
4GB/8GB
(DDR3 pluggable) |
| ROM |
128GB/256GB/512GB/1TB ( Msata SSD pluggable) |
| WIFI /BT |
WIFI
802.11(ac) dual-band wifi 2.4G+5G / BT4.0 external antenna |
| Speaker |
*1 |
| System |
| System |
Windows
10/Windows 7/Ubuntu20.04 optional |
| Port |
| USB port |
USB3.0*2，USB2.0*2 |
| DC port |
DC
12V-7A 5.5mm |
| Audio
input port |
*1 ∮3.5mm
standard audio input port |
| Audio output port |
*1
∮3.5mm standard audio output port |
| RJ45 Network port |
x1
(10/100/1000M adaptive) batch customization optional dual network ports |
| Video output port |
VGA*1 |
| HD output port |
HDMI*1 |
| DB9 serial port |
Batch
customization optional, RS232/422/485 |
| Power |
| Power Adapter |
AC100V ~ 240V,
50Hz/60Hz output DC 12V/7A |
| Certificate |
| Certificate |
IP65 report:
Waterproof test: IP-X5, Dustproof test: IP-6X |
| a.
Nozzle inner diameter: 6.3mm; b. Water flow rate: 12.5±0.625L/min; |
| c.Water pressure: Adjust according to the specified water flow
rate; |
| d.Central part of the main water flow: diameter 2.5m away from
the nozzle About 40mm circle; |
| e.Water spraying time per square meter of shell surface: about 1
minute; f. Test time: at least 3 minutes; |
| g.
Distance from nozzle to shell surface: 2.5~3m. |
| After
the test, check that there is no water ingress into the sample. |
| Product Reliability |
| Operating temperature |
-10
°C to 50 °C |
| Storage temperature |
-20
°C to 60 °C |
| Relative humidity |
5～85%
(no condensation) |
