영상보안 IPC 제품 IR 뷸렛 카메라

IPC2253-UFNB-PIR40(-L0360, -L0600)

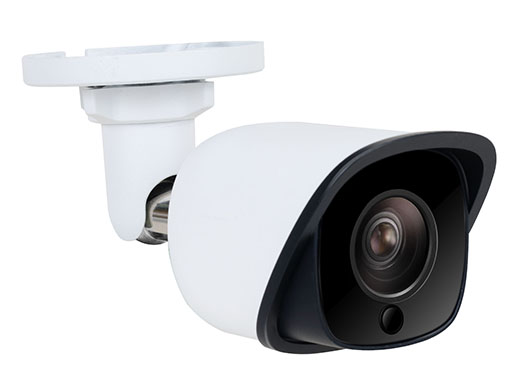

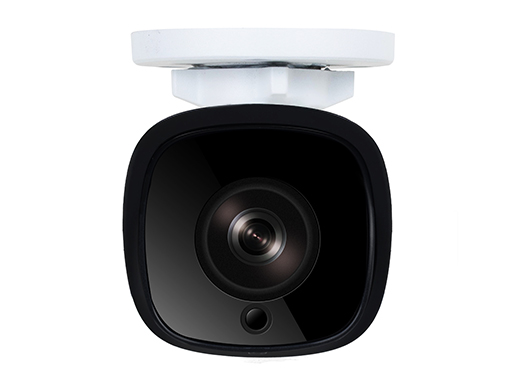

2.0MP Starlight & Ultra WDR HD Network Mini IR Bullet Camera

구매수량
회원가
로그인하세요.

Excellent Image Quality

· 2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor

· High definition and smooth picture, 1080p@30fps

· H.265 video codec, saves up to 50% bandwidth and storage

· Ultra low illumination, 0.002lux with color picture

· 120dB Ultra WDR

· 3D noise reduction / HLC


Mini size

· 0.6 kg / 1.32lb (Gross Weight)

· 161.5 x 62 x 57mm / 6.36’’ x 2.44’’ x 2.24’’


Intelligent Functions

· Motion detection / Tampering / Guard line / Enter guard area / Exit guard area


Integrated High Efficiency IR

· Industrial IR LED with long operational lifespan

· 40m IR distance

· Smart IR function


A Variety of Installation Modes

· Supports 90°, 180°, 270° image rotation


Abundant Functions and Features

· Micro SD card slot, supports Automatic Network Replenishment (ANR)

· Dual-stream (1080p + D1)

· Anti-fog glass

· -40°C ~ 70°C operation temperature

· PoE

· IP67


　

IPC2253-UFNB-PIR40
Camera
Image Sensor  1/2.8’’ progressive scan CMOS
Pixels 2.0 Megapixel
Min. Illumination  Color: 0.002lux @ (F2.0,  AGC ON)
B/W: 0.0002lux @ (F2.0,  AGC ON); 0lux  with IR
Shutter Speed 1 ~ 1/30,000s
Day / Night Auto (ICR) / Color / B/W
Wide Dynamic Range Ultra WDR, >=120db
S/N Ratio >50dB
White Balance Auto / Manual
Gain Control Auto / Manual
Backlight Compensation Off / WDR / BLC / HLC
Lens
Mount Type M12
Focal Length 3.6mm (-L0360) / 6mm (-L0600)
Angle of View 78.6° (-L0360) / 53.2° (-L0600)
Infrared
IR Distance 40m (-L0360, -L0600)
IR Intensity Smart IR
Video
Compression H.265 / H.264 / MJPEG
Image Resolution Main stream: 1080p
Secondary stream: D1
Frame Rate Main stream: 1080p@30fps
Secondary stream: D1@30fps
Bitrate 64kbps ~ 8Mbps
Bitrate Control VBR / CBR
Dual-stream Supported
Caption Date and time / Alarm / Customized
Privacy Masking Up to 4 zones
Motion Detection Up to 4 zones
ROI Supported
Digital Noise Reduction 3D noise reduction
Digital Defog Supported
Image Flip Flip / Mirror / Rotation at 90°, 180°, 270°
Network
Network Protocols TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, IGMP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface IPC Control (IE, Firefox, Chrome)
Max. User Access Max. 10 Users (includes 2 internal)
Application Programming ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR) Supported
Alarm
Alarm Triggers Network disconnect / Disk full / Disk error
Intelligent Motion detection / Tampering / Guard line / Enter guard area / Exit guard area
Alarm Events Alarm report / Recording / Text overlay / Snapshot / Email notice
Interfaces
Ethernet 10/100M, RJ45 interface
Memory Slot Micro SD card slot, supports up to 128GB
Environmental
Operating Temperature -40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity  10% ~ 95%
Protection Level IP67
Electrical
Power  12V DC ± 10% / PoE (IEEE802.3af)
Power Consumption Max. 7W
Mechanical
Weight  0.6 kg / 1.32lb (Gross Weight)
Dimensions 161.5 x 62 x 57mm / 6.36’’ x 2.44’’ x 2.24’’
Mounting Bracket Bracket included
