UTC3033

Car Finding System _ Video Detector (1 camera 3 spaces)

회원가
로그인하세요.

Overview

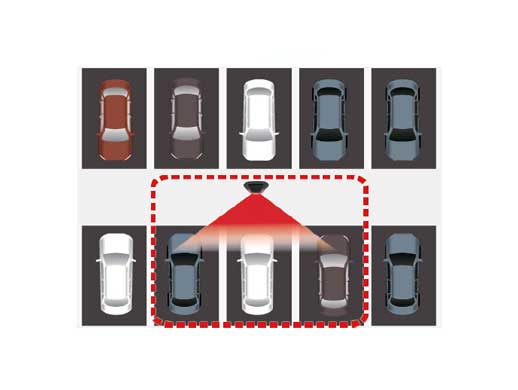

· Installed in front of and opposite to every 3 parking spaces to capture real-time images from each parking space,show real-time parking status and guide drivers to the nearest available parking spaces.

· integrated with LED indicator as one unit,show green for vacancy,red for occupancy

· adopt advanced video compression technology,high compression ratio and flexible handling

· 3 million pixels,scans CMOS line by line,max.resolution up to 2304*1296

· support D1 video coding and capturing

· support JPEG capturing,max.size of image up to 2304*1296

· support recognize parking status and continuous capturing


UTC3033
Technical Parameters
Input Voltage   12VDC
Max. Working Current 300mA
Max. Power 3.6W
Operation System  Linux
Port Type  RJ45 network port,communication+power
Photo Resolution 3 mega pixels 2304*1296
Captured Parking Spaces Max. 1 Parking Space
Response Time  5s
Min.Illuminance 0.1 Lux(plate recognition≥12 lux)
White Balance  Support
White Dynamic Support
3D De-noise Support
Working Humidity 10%-90%
Working Temperature -20℃~+60℃
Appearance Size 140*140*65mm
