IPC2452-UHNB-SIR50-Z2812

영상보안 IPC 제품 IR 뷸렛 카메라

4.0MP HD Network Varifocal IR Bullet Camera

구매수량

회원가: 로그인하세요.

첨부파일 다운로드

Specification

IPC2452-UHNUHNB-SIR50-Z2812.pdf

확장자 :

pdf

파일크기 :

459KB

다운로드

Excellent Image Quality

· 4.0 Megapixel 1/3’’ progressive scan CMOS sensor

· High definition and smooth picture, 2592×1520@20fps, 2048×1520@25fps, 1080p@30fps

· H.265 video codec, saves up to 50% bandwidth and storage

· Low illumination, 0.05lux with color picture

· WDR / HLC / 3D noise reduction

Intelligent Functions

· Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge

Integrated High Efficiency IR

· Industrial IR LED with long operational lifespan

· 30 ~ 50m IR distance

· Smart IR function

A Variety of Installation Modes

· Supports 90°, 180°, 270° image rotation

Abundant Functions and Features

· Micro SD card slot, supports Automatic Network Replenishment (ANR)

· Bi-directional audio / alarm in and out / video out / RS485

· 2 channel audio input simultaneously

· Dual-stream (2592×1520 + D1)

· Anti-fog glass

· -40°C ~ 70°C operation temperature

· PoE

· IP67 (-UHNB only)

	IPC2452-UHN/UHNB-SIR
Camera
Image Sensor	1/3’’ progressive scan CMOS
Pixels	4.0 Megapixel
Min. Illumination	Color: 0.05lux @ (F1.6, AGC ON)
Min. Illumination	B/W: 0lux with IR
Shutter Speed	1 ~ 1/30,000s
Day / Night	Auto (ICR) / Color / B/W
Wide Dynamic Range	Digital WDR
S/N Ratio	>50dB
White Balance	Auto / Manual
Gain Control	Auto / Manual
Backlight Compensation	Off / WDR / BLC / HLC
Lens
Mount Type	M12
Focal Length	3.6mm (-L0360) / 6mm (-L0600) / 8mm (-L0800) / 12mm (-L1200) / 16mm (-L1600)
Angle of View	78.6° (-L0360) / 53.2° (-L0600) / 36.8° (-L0800) / 23.7° (-L1200) / 17.8° (-L1600)
Infrared
IR Distance	30m (-L0360, -L0600, -L0800) 50m (-L1200, -L1600)
IR Intensity	Smart IR
Video
Compression	H.265 / H.264 / MJPEG
Image Resolution	Main stream: 2592×1520
Image Resolution	Secondary stream: D1
Frame Rate	Main stream: 2592×1520@20fps, 2048×1520@25fps, 1080p@30fps
Frame Rate	Secondary stream: D1@30fps
Bitrate	64kbps ~ 16Mbps
Bitrate Control	VBR / CBR
Dual-stream	Supported
Caption	Date and time / Alarm / Customized
Privacy Masking	Up to 4 zones
Motion Detection	Up to 4 zones
ROI	Supported
Digital Noise Reduction	3D noise reduction
Digital Defog	Supported
Image Flip	Flip / Mirror / Rotation 90°, 180°, 270°
Audio
Compression	G.711a / G.711u / ADPCM / G.722 / AAC-LC
Bitrate	32kbps ~ 64kbps
Audio Function	Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute
Network
Network Protocols	TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, IGMP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional)
User Interface	IPC Control (IE, Firefox, Chrome)
Max. User Access	Max. 10 Users (includes 2 internal)
Application Programming	ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI
Automatic Network Replenishment (ANR)	Supported
Alarm
Alarm Triggers	Alarm input / Network disconnect / Disk full / Disk error
Intelligent	Motion detection / Tampering / Guard line / Defocus / Scene change / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge
Alarm Events	Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm
Interfaces
Ethernet	10/100M, RJ45 interface
Audio In / Out	2 x Line in / 1 x Line out
Control	1 x RS485
Alarm In / Out	1 x Input / 1 x Output
Video Out	1 x BNC, 1.0V [p-p] / 75Ω
Memory Slot	Micro SD card slot, supports up to 128GB
Environmental
Operating Temperature	-40°C ~ 70°C / -40°F ~ 158°F
Operating Humidity	10% ~ 95%
Protection Level	-UHN: IP66 -UHNB: IP67
Electrical
Power	12V DC ± 10% / PoE (IEEE802.3af)
Power Consumption	Max. 11W

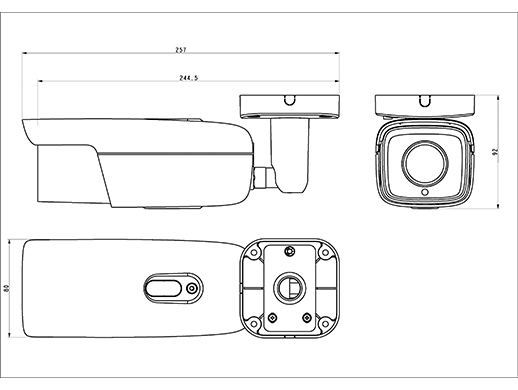

Mechanical
Weight	-UHN: 1kg / 2.2lb (Gross Weight) -UHNB: 1.2kg / 2.65lb (Gross Weight)
Dimensions	-UHN: 181.5 x 80 x 73mm / 7.15’’ x 3.15’’ x 2.87’’ -UHNB: 271.3 x 80 x 87.8mm / 10.68’’ x 3.15’’ x 3.46’’
Mounting Bracket	-UHN: Bracket not included -UHNB: Bracket included
