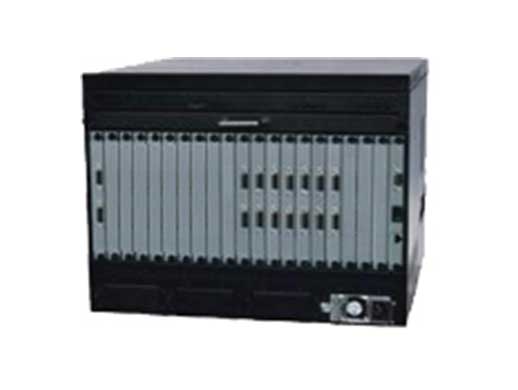

UMC6000-N1 제품대표이미지
UMC6000-N1 상세이미지 1

시각화 플랫폼 디스플레이 IPWALL 컨트롤러

UMC6000-N1

Hybrid Wall Controller

회원가
로그인하세요.

Product Features

· Hybrid FPGA Pure-Hardware Structure.

· Various Types of Chassis (1.5U/4U/7U/13U)

· Various Video wall by Groups of Management(DLP/LED/LCD)

· Professional functions for Roaming, Splicing, Drag, Preview Signal, Image Overlay and Group Moving

· IP camera and PC videos by IP decoding card

( 1 ch 4K,4 ch Pixel-to-Pixel 1080Pl,16 ch Compressed 1080P and 32 ch 720P )

· 16 Split windows and Video Images into each Screen

· Remote Turn on/off Video by Wall/ Call Preset

· Customized Preset of each Group and Interval to Separate

· Auto Detect and Alarm I/O Card Real-Time Operating Temperature

· Virtual Mouse Control Signal Window on the Video Walls Directly.

· Remark Function in the Virtual Control Software Interface.

· Split One Complete Signal Image distrubute in Signal Window.

· Black Interval Lines that Protects LCD and Display devices.

· Customized Caption control for Color, Font, Size and movement.

· Adaptive PC Node

· Web Browser/APP/ C/S Based Control

· Hot Plugin Module Card Design and Redundant Power Supply




Model UMC6000-N1
DVI Input Card
Port Type  DVI-I
Channel and Port number of each cards  4 Channels
Maximum Resolution  1920×1200@60Hz
Adaptable Signal Type  VGA/DVI/HDMI(Adapter)
Digital Protection  Support HDCP
IP Decoding Input Card
Port Type  RJ-45 1G
Max Resolution  4K
Decoding Capacity  1 CH 4K,4 CH Pixel-to-Pixel 1080Pl,16 CH Compressed 1080P ,32 CH 720P.
Supported Protocol  ONVIF，RTSP
Decoding Format  H.264，H.265
4K HDMI Input Card
Port Type  HDMI 1.4 / HDMI 2.0
Channel and Port number of each cards  4 channels/ 2channels
Maximum Resolution  3840×2160@30Hz/3840×2160@60Hz
FHD HDMI Input Card
Port Type  HDMI ( DP converter available)
Channel and Port number of each cards  8 channels
Max. Resolution  1920 x 1200 @60HZ
Digital Projection  HDCP
Video Input Card
Port Type  BNC
Video Format  PAL/NTSC
Channel and Port number of each cards  4 channels of Inputs
Max. Resolution  PAL:720 x 576@25fps/s, NTSC: 720 x 478@ 30fps/s
DVI Output Card
Port Type  DVI-D
Channel and Port number of each cards  4 channels of outputs
Max. Resolution  1920*1200@60Hz(customize)
HDMI Output Card
Port Type  HDMI(DP converter available)
Channel and Port number of each cards  8 channels of outputs
Max. Resolution  1920 x 1200 @60 HZ
4K HDMI Output Card
Port Type  HDMI 1.4 / HDMI 2.0
Channel and Port number of each cards  4 channels and 2 channels of outputs
Max. Resolution  4K Resolution of each outputs (3840×2160@60Hz / 3840 x 2160 @ 30 Hz)
Network Output Card for LED Display
Port Type  RJ45 Port
Channel and Port number of each cards  16 Ports (650,000 pixels @Port)
Loading Pixels Capacity  Unlimited & Expandable UHD Resolution (each card performs 10.4 Million Pixels)
General
Control System  Windows/Android
Network Protocol  TCP/IP
4U Chassis  482(W)×178(H)×300(D)(mm)/ 11kg (Full Card)/10 Slots for Input & Output cards
7U Chassis  482(W)×311(H)×300(D)(mm)/ 20kg (Full Card)/20 Slots for Input & Output cards
13U Chassis  482(W)×577(H)×300(D)(mm/ 38kg (Full Card)/40 Slots for Input & Output cards
Power Voltage  100-240V, AC 5A,50/60HZ
Redundant Power  Optional
Operating Humidity  10 %～90%, no-condensing
Running Temperature  0°C～40°C
Storage Temperature  -20°C-70°C
