시각화 플랫폼 디스플레이 LED 디스플레이

P0.93

Indoor Full Color Led Display

회원가
로그인하세요.

Product Features

· Super Light Die-Casting Aluminum LED Cabinet

· Adjustable Brightness with High Gray Scale

· Vivid Display Visual Effect Performance

· Seamless Splicing Video Walls with Modul Design

· Low Consumption & User- Friendly Operation

· High Refresh Rate 3840Hz

· Excellent Heat Dissipation Processing Capacity.

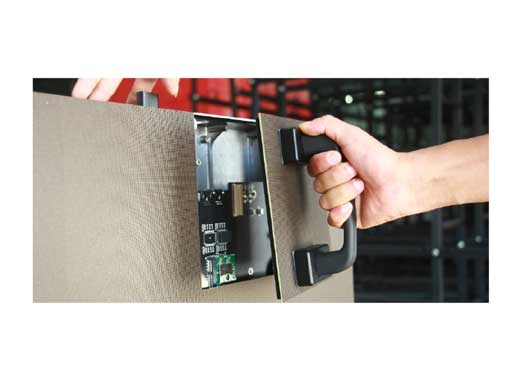

· Front Access/ Rear Maintenance Access Method


Model  P0.93
LED Module
Pixel Pitch 0.9375 mm
LED Package UMD-M09C
Chipset Brand Nationstar
LED Module Size 300 mm x 168.75 mm
LED Module Resolution  320  dots x 180 dots
Module Signal Input  Precision gold plated connector direct connection
Module Power Supply  Input  Precision gold plated connector direct connection
Electromagnetic compatibility  Support
LED Cabinet
Cabinet Die-Casting  Aluminum Cabinet
Cabinet Size 600 x 337.5 mm x 40mm
Cabinet Resolution 640 dots x 360 dots
Cabinet Weight 5.7KG
LED Module Flatness Rate ≤ 0.1mm
Control System Embedded Colorlight Receive Card
Signal Cable Connection RJ45 flexible loop
Power Cord Connection U Type terminal direct connection
Dual Power Supply  option
LED Screen
Physical Density 1130000 dots/sqm
Brightness 200~600 cd/㎡ (adjustable)
View Angle H: 140°，V:140°
Best View Distance 0.9m ~ 30m
Flatness Rate ≥98%
Color Difference ± 0.003
Contrast

5000:01:00
Protection Grade Rear: IP35 Front : IP35
Maintenance Front/Rear
System Control
Color Gamut ≥ 16 bit
Drive Way Dynamic 1/60 scanning
Image Transmission Speed ≥ 72 fps/s
Screen Refresh Rate ≥3840 Hz
Brightness Adjustment 256 Grade Calibration
Pixel Correction Brightness/ Color Calibration
Control Way Sync Control/Async Control
Control Distance Super five twisted pair cable, use optical cable
if over 100mm transmission distance
Software Interface Windows XP/7/8/10
Input Signal DVI/HDMI
Other
Power Supply AC: 220V/380V, 50 ~60 Hz
Average Consumption 100W/㎡~180W/㎡
Max. Consumption 500W/㎡
Working Time 7x 24 Hrs
LED Lifespan 100000 hours
Drip Leakage Current ≤ 1MA
Blind Dot Rate  ≤ 0.0001
Temperature while Running ≤ 5 ℃
Working Temperature -10 ℃  ~ 60 ℃
Working Humidity 10%-90% （ No-Condensing）
Storage Temperature -40 ℃  ~ 60 ℃
Storage Humidity 10% ~90%(No Condensing)
Protection Moisture-proof, dust-proof, anti-corrosion, anti-static,
anti-lightning, and over current, short circuit, over voltage, under voltage protection.
