| IPC545-RTX |
열화상 모듈 |
Image Sensor | Vanadium Oxide Uncooled Focal Plane |
Resolution | 800 x 600 |
Lens | 100mm, 8x thermal |
Pixel Interval | 12μm |
NETD | < 50mk(@25°C,F#1.0) |
Response Waveband | 8μm ~ 14μm |
Color mode | Multiple modes |
광학 카메라 |
Image Sensor | 1/1.8’’ Progressive Scan CMOS |
Pixels | 4.0 Megapixel |
Min. Illumination | Color: 0.005Lux @ (F1.2, AGC ON) B/W: 0.0005Lux @ (F1.2, AGC ON); 0Lux with Laser |
Shutter Speed | 1 ~ 1/30,000S |
Day / Night | Auto (ICR) / Color / B/W |
Wide Dynamic Range | Ultra WDR, >=120dB |
S/N Ratio | >57dB |
White Balance | Auto / Manual |
Gain Control | Auto / Manual |
Backlight Compensation | Off / WDR / BLC / HLC |
렌즈 |
Focal Length | 12.5 ~ 775mm, 62x (선택옵션 T1) 16.7 ~ 1000mm, 60x (선택옵션 T2) |
Horizontal Angle of View | 29.1°~ 0.5°(Wide~Tele) |
Vertical Angle of View | 16.7°~0.2°(Wide~Tele) |
Min. Object Distance | 5000mm (Wide) |
Max. Aperture Ratio | F3.5 (Wide) / F16 (Tele) |
Focus Control | Auto / Manual |
Optical Defog | Supported |
레이저 |
Wave Length | 808nm |
Power Consumption | 20W |
Laser Distance | 5Km |
Laser Intensity | Automatically adjust according to zoom ratio |
Illuminating Angle | 0.3° ~ 40° continuous change |
비전 |
Day | 10Km |
Night | 5Km |
팬 및 틸트 |
Pan / Tilt Range | 360° Endless / - 45° ~ 45° (Auto Flip) |
Pan / Tilt Speed | Pan manual speed: 0.01° ~ 40°/s; Tilt manual speed: 0.01° ~ 20°/s; |
Proportional Zoom | Pan / Tilt speed can be adjusted automatically according to zoom multiples |
Preset | 256 |
Patrol | 8 Patrols scheme |
Power-off Memory | Power-off memory / Power-on recovery |
Auto Guard | Supported |
PT Limit | Supported |
3D Positioning | Supported |
비디오 |
Compression Format | H.265 / H.264 / MJPEG |
Image Resolution | Main stream: 2688×1520 Secondary stream: D1 |
Frame Rate | Main stream: 25fps Secondary stream: D1@30fps |
Bitrate | 32kbps ~ 16Mbps |
Bitrate Control | VBR / CBR |
Multi-stream | Supported |
Caption | Date and time / Alarm / Direction / Customized |
Privacy Masking | Up to 4 zones |
Motion Detection | Up to 4 zones |
Video Freeze | Supported |
ROI | Supported |
Digital Noise Reduction | 3D noise reduction |
Digital Defog | Supported |
Image Flip | Mirror |
오디오 |
Compression | G.711a / G.711u / PCM / AAC / MPEG2-Layer2 |
Bitrate | 32kbps ~ 64kbps |
네트워크 |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
User Interface | IPC Web |
Max. User Access | Max. 10 Users (include 2 internal) |
Application Programming | ONVIF, GB/T 28181-2011,CGI |
Automatic Network Replenishment (ANR) | Supported |
알람 |
Alarm Triggers | Network disconnect / Disk full / Disk error |
Intelligent | Motion detection / Guard line / Enter guard area / Exit guard area /Object left / Object removal / Gathering |
Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice/ |
인터페이스 |
Ethernet | 10/100M, RJ45 interface |
Audio In / Out | 1 x Line in / 1 x Line out |
Alarm | 7 x Input / 2 x Output |
Memory Slot | Micro SD card slot, supports up to 256GB |
작동 환경 |
Operating Temperature | -40°C ~ 60°C / -40°F ~ 140°F |
Operating Humidity | 10% ~ 95% |
Protection Level | IP66, TVS 6000V lightning protection, surge protection and voltage transient protection |
전원 및 전력 |
Power | 48V DC ± 25% (Power adapter included) |
Power Consumption | Max. 200W (Laser on) |
외형 |
Weight | 60kg / 132.28lb (Gross Weight) |

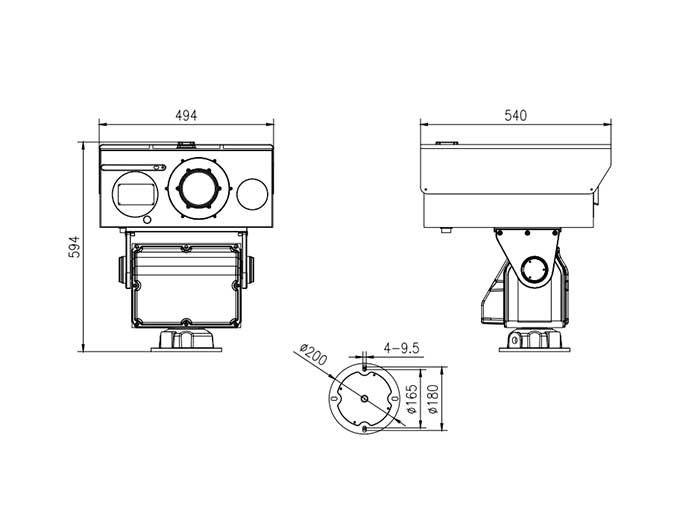

Dimensions | 540 × 494 × 594mm |
