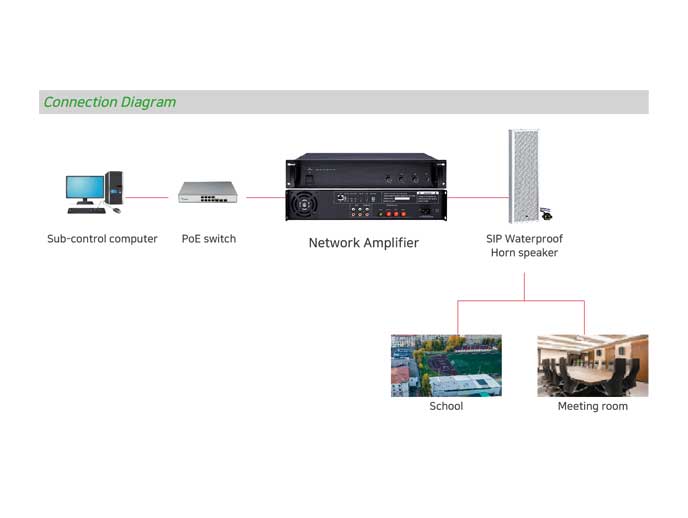

UBT-NPA Series 상세이미지 1

시각화 플랫폼 방송장비

UBT-NPA Series

SIP Network Amplifier

회원가
로그인하세요.

Audio characteristics

· Narrowband speech coding: G.711a/u, G.723.1, G.726-32K, G.729AB. Wideband speech coding: G.722

· Voice activation detection/silence suppression

Network characteristics

· Support SIP 2.0, TCP/IP, UDP, DHCP.

· Support primary DNS and secondary DNS server

· Support VLAN

· Support SNTP client

· Support VPN L2TP / PPTP

· Support SRTP

· Support webpage HTTP/HTTPS

· Support Qos: 802.1 p/q, DSCP

· Support MOS authentication

· DHCP /static/ PPPoE

· STUN

Configuration and management

· Via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069 for Auto-Provisioning

· Web management interface

· Web-based Packet -dump

· Configuration export/import

· Software upgrade

· System Work Log (Syslog)

Model  6060 6090 6150 6250 6350 6450 6550 6650
Power supply  AC220V
Network interface  Standard Rj45
Transmit speed  10Mbps/100Mbps
Protocol support  TCP/IP, UDP, DHCP
Audio format  MP3
Audio model  16digit stereo CD tone
Sample rate  8K~96K
Bit rate  8K~512Kbps
EMC input sensitivity  775mV
AUX input sensitivity  550mV
MIC input sensitivity  10mV
Treble boost and attenuation  ±10.5dB
Bass boost and attenuation  ±10.5dB
Output power  60W 90W 150W 250W 350W 450W 550W 650W
Standby  power consumption  <13W
Frequency response  60Hz~18KHz+1/-3dB
THD  THD≤0.1%
Noise signal ratio  ≥85dB
Output method  4~16Ω fixed resistance output 70V/1 DOV fixed voltage output
Protection  High temp,overload and short-circuit
Working temperature 0°C~60°C
Working humidity  10%~90% Relative humidity, non condensing
Dimensions  484x450x88mm
Weight  12Kg 14Kg 15Kg 16Kg 18Kg 20Kg 27Kg 30Kg
Maximum power dissipation  100W 150W 260W 450W 700W 950W 1200W 1600W
