IPC525-UF260-NL5-R150 |
열화상
모듈 |
이미지 센서 |
Vanadium Oxide Uncooled Focal
Plane Arrays |
해상도 |
800 x 600 |
렌즈 |
150mm |
감지 피치 |
17μm |
NETD |
< 40mk(@25°C,F#=1.0) |
응답 파장대 |
8μm ~ 14μm |
색상 모드 |
up to 9 modes |
카메라 |
|
이미지 센서 |
1/1.9’’ Progressive Scan CMOS |
픽셀 |
2.0 Megapixel |
최저
조도 |
Color: 0.001Lux @ (F1.2, AGC ON) |
B/W:
0.0001Lux @ (F1.2, AGC ON); 0Lux with Laser |
셔터 속도 |
1 ~ 1/30,000S |
주간/ 야간 |
Auto (ICR) / Color / B/W |
광역 역광 보정 |
Ultra WDR, >=120dB |
S/N
Ratio |
>57dB |
화이트 밸런스 |
Auto / Manual |
게인 제어 |
Auto / Manual |
역광 보정 |
Off / WDR / BLC / HLC |
렌즈 |
초점
거리 |
16.7 ~ 1000mm, |
60x
optical, 2x Barlow lens supported |
줌 속도 |
Approx 3 ~ 10s (Optical) |
화각 |
23.01°~ 0.41° (Wide~Tele) |
최소 지근 거리 |
5000mm (Wide) |
최대 조리개
비율 |
F3.5 (Wide) / F16 (Tele) |
초점 제어 |
Auto / Manual / Semi-Automatic |
자동 후방 초점 |
Auto |
광학 안개 보정 |
Supported |
레이저 |
파장 |
808nm |
소비 전력 |
25W |
레이저 거리 |
5Km |
레이저 강도 |
Automatically adjust according
to zoom ratio |
조명 각도 |
0.3° ~ 30° continuous change |
비전 |
|
주간 |
10Km |
야간 |
5Km |
팬
및 틸트 |
팬/ 틸트 범위 |
360° Endless / - 60° ~ 60° (Auto
Flip) |
팬/ 틸트 속도 |
Pan manual speed: 0.01° ~ 15°/s;
Pan preset speed: 25°/s |
|
Tilt manual speed: 0.01° ~
10°/s; Tilt preset speed: 12°/s |
비례 줌 |
Pan / Tilt speed can be adjusted
automatically according to zoom multiples |
프리셋 |
256 |
패트롤 |
8 Patrols scheme, up to 32
presets per patrol |
패턴 스캔 |
4 Scan paths, each path can
record 10 minutes of operation path |
정전 후
기억재생 |
Power-off memory / Power-on
recovery |
오토 가드 |
Path / Preset / Pan scan |
PT 제한 |
Manual / Scan / Pan |
3D 위치 |
PTZ control with mouse click and
drag |
전자 나침반 |
Built-in O-sensor |
위치 센서 |
GPS |
보호
케이스 |
하우징 글래스 |
AR & AF glass |
비디오 |
압축 포맷 |
H.265 / H.264 / MJPEG |
이미지 해상도 |
Main stream: 1080p |
|
Secondary stream: D1 |
프레임레이트 |
Main stream: 1080p@60fps |
|
Secondary stream: D1@30fps |
비트레이트 |
32kbps ~ 16Mbps |
비트레이트 제어 |
VBR / CBR |
멀티 스트림 |
Supported |
캡션 |
Date and time / Alarm /
Direction / Customized |
프라이버시
마스크 |
Up to 4 zones |
움직임 감지 |
Up to 4 zones |
비디오 정지 |
Supported |
ROI |
Supported |
디지털 노이즈
제거 |
3D noise reduction |
디지털 안개
보정 |
Supported |
이미지 뒤집기 |
Mirror |
오디오 |
압축 |
G.711a / G.711u / ADPCM / G.722
/ AAC-LC / G.722.1c / G.726 |
비트 레이트 |
32kbps ~ 64kbps |
오디오 기능 |
Bi-directional audio / AEC /
Mixed audio recording / Dumb / Mute |
네트워크 |
네트워크
프로토콜 |
TCP/IP, UDP, HTTP, DHCP,
DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP,
IPv4, IPv6 (optional) |
사용자
인터페이스 |
IPC Control (IE, Firefox,
Chrome) |
최대 사용자
접속 |
Max. 10 Users (include 2
internal) |
응용 프로그램 |
ONVIF (Profile S, Profile G),
GB/T 28181-2011, API, CGI |
ANR |
Supported (Automatic Network
Replenishment ) |
알람 |
알람 트리거 |
Network disconnect / Disk full /
Disk error |
지능형 기능 |
Motion detection / Tampering /
Guard line / Enter guard area / Exit guard area / Object left / Object
removal / Gathering / Audio surge |
알람 이벤트 |
Alarm report / Recording / Text
overlay / Snapshot / External output / Email notice / Acoustic alarm |
인터페이스 |
이더넷 |
10/100M, RJ45 interface |
오디오 입/
출력 |
1 x Line in / 1 x Line out |
알람 |
1 x Output |
메모리 슬롯 |
Micro SD card slot, supports up
to 128GB |
작동
환경 |
작업 온도 |
-40°C ~ 60°C / -40°F ~ 140°F |
작업 습도 |
10% ~ 95% |
보호 레벨 |
IP66, TVS 6000V lightning
protection, surge protection and voltage transient protection |
전원
및 전력 |
전원 |
24V DC ± 25% (Power adapter
included) |
소비 전력 |
Max. 120W (Laser on) |
외형 |
무게 |
70kg / 154.3lb (Gross Weight) |

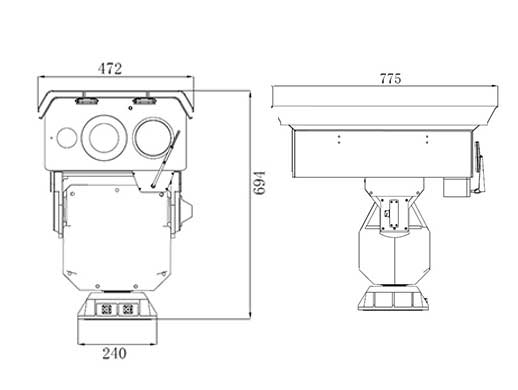

크기 |
775 × 424 × 688.5mm / 30.51’’ x
16.69’’ x 27.11’’ |
