KDM2802A-M-G2
KDM2802A-M-G2

Video Surveillance VMS Embedded VMS

KDM2802A-M-G2

High-capacity VMS - Video Management System

Quantity
Member Price
Please login.

High-performance, High-capacity

· Up to 5000 channel per unit

· Max. 640Mbps incoming bandwidout

· Max. 640Mbps output bandwidout

· Up to 300 users access simultaneously

· 8-level cascade

· 32 devices stack per level


High reliability

· Embedded Linux

· Supports Packet Loss Recovery (PLR)

· Redundant Power Supply

· N+1 Hot Backup


Abundant Functions and Features

· E-Map, TV-Wall supported

· Bi-directional audio

· NAT, Socks5

· Alarm management

· Free Client (CU client)


  KDM2802A-G2
Capacity
Access 5000 Channel
Stack 32 devices per level, up to 15000 Channel
Cascade 8-level, up to 50000 Channel
Incoming Bandwidth Max. 640Mbps
Output Bandwidth Max. 640Mbps
Live Viewing
Multi Screen Display  up to 64 mutil-window
E-Map Live Viewing in E-Map
Function E-PTZ / Scheme / Polling / TV-Wall (optional with decoder)
Recording
Mode Manual / Continuous / Schedule / Event (Pre / Post)
Event Trigger Alarm input / Video lost / Motion Detection
Search & Playback
Search Mode Date and time (Calendar) / Event
Playback Mode Single Playback / Multi Playback / Synchronize Playback
Function Slow forward / Fast forward / Loop / Single Frame / E-PTZ
Storage
External IP SAN (iSCSI), up to 31 x  IP SAN
Video
Compression H.265 / H.264 / MPEG4
Image Resolution QXGA, 1080p, UXGA, 960p, 720p, XGA, SVGA, D1, CIF, QCIF
Frame Rate 1 ~ 30fps
Bitrate 64kbps ~ 8Mbps
Audio
Compression G.711a / G.711u / ADPCM / G.722 / G.722.1c / AAC-LC
Bitrate 32kbps ~ 64kbps
Alarm
Alarm Triggers Alarm input / Video lost / Motion Detection / Disk alarm
Alarm Events Snapshot / Recording / PTZ preset / Alarm out / Buzzer / Link to Client / Alarm caption
System
Operating System Embedded Linux
User Management Super admin / Admin / User
Log Management User login / User operation / Device / Alarm / Backup
Network
Network Protocols SIP, TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, FTP, SNTP, VSIP
Viewer Software CU Client
Max. User Access 300 Users
Protocols ONVIF, GB/T 28181-2011
Aplication Programming CU SDK
Function NAT / Socks5 / Multiple network access / Packet loss recovery
Hot Backup N+1
Interfaces
Ethernet 3 x Gigabit network port, RJ45 interface
USB 4 x USB2.0
Control 1 x RS485
Video Out 1 x VGA, for debug only
Internal 2 x USB2.0, for USB license dongle
Environmental
Operating Temperature 0°C ~ 55°C / 32°F ~ 131°F
Operating Humidity  10% ~ 90%
Electrical
Power  100 ~ 240V AC, 50 ~ 60Hz
Redundant Power Supply
Power Consumption Max. 80W
Mechanical
Weight  15kg / 33.07lb (Gross Weight)

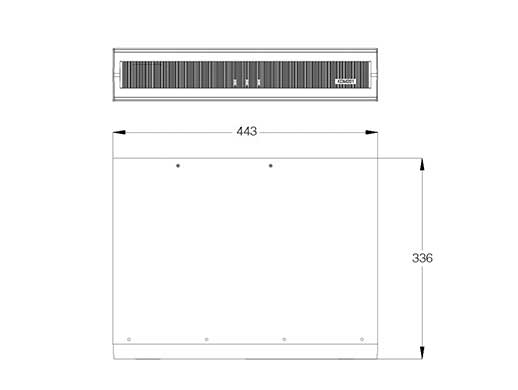

Dimensions 443 x 461 x 88mm / 17.44’’ x 18.15’’ x 3.46’’
