| Model | POE33108PFM POE33108PFM-at |
| Interface Characteristics |
| Fixed Port | 1*Console RS232 port (115200,N,8,1)
8*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber ports (Data) |
| Ethernet Port | Port 1-8 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/
MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
| Optical Fiber Port | Gigabit optical fiber interface, default no include optical module (optional
single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable/
Distance | Multi-mode: 850nm /0-550m, Single-mode: 1310nm /0-40km, 1550nm
/0-120km. |
| Chip Parameter |
Network
Management Type | L2+ |
| Network Protocol | IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 20Gbps (non-blocking) |
Forwarding
Rate@64byte | 14.88Mpps |
| CPU | 416MHz |
| DRAM | 1G |
| FLASH | 128M |
| Buffer Memory | 4M |
| MAC | 8K |
| Jumbo Frame | 9.6K |
| LED Indicator | Power: PWR (Green), System: SYS (Green), Network: Link (Yellow), Fiber
port: L/A (Green), POE: PoE (Green) |
| Reset Switch | Yes, support one key to restore factory settings |
| PoE & Power Supply |
| PoE Port | Port 1-8 |
| PoE Management | Port PoE output power allocation, on/off/af/at PoE power supply total power limit configuration
PoE work and time scheduling, Power supply delay start
Port PoE output priority configuration, Port PoE working status display |
| Power Supply Pin | 1/2(+) 3/6 (-) |
| Max Power Per Port | 30W, IEEE 802.3 af/at |
Total PWR / Input
Voltage | 130W/ (AC100-240V) 250W/ (AC100-240V) |
| Power Consumption | Standby<8W, Full Load<120W Standby<10W, Full Load<240W |
| Power Supply | Built-in power supply, AC100~240V Built-in power supply, AC100~240V
50-60Hz, 2.3A 50-60Hz, 4.1A |
| Physical Parameter |
Operation TEMP/
Humidity | -20°C~+55°C, 5%~90% RH Non condensing |
Storage TEMP/
Humidity | -40°C~+75°C, 5%~95% RH Non condensing |

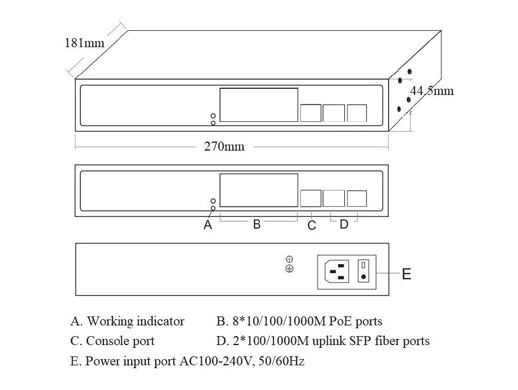

| Dimension (L*W*H) | 270*181*44.5mm |
| Net /Gross Weight | 1.3kg/ 1.9kg 1.5kg/ 2.1kg |
| Installation | Desktop, wall mount, 19-inch 1U cabinet mount |
| Certification & Warranty |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, |
| RoHS |
| Warranty | 3 years, lifelong maintenance. |
| Network Management Feature |
| Interface | Port temperature protection setting IEEE 802.3x flow control (Full duplex)
Port green Ethernet Energy-saving setting Broadcast storm control based on port speed
Limit the speed of the message traffic at the inbound and outbound ports
mini granularity is 64Kbps |
| L3 Feature | ARP protocol, max 1024 entries
Static route /default route max 128 entries
L2+ network management function, IPV4/IPV6 management
L3 software routing non-wire-speed forwarding, support communication between different network segments and different VLAN |
| VLAN | Port-based VLAN (4K), IEEE802.1q Voice VLAN, Protocol-based VLAN Access, Trunk, Hybrid port configuration
MAC address-based VLAN, QinQ configuration |
| Port Aggregation | LACP dynamic aggregation, static aggregation
Max 5 aggregation groups and 8 ports per group |
| Spanning Tree | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
ERPS Ring Network
Protocol | G.8032 (ERPS), recovery time less than 20ms
255 Ring at most, Max 254 devices per ring. |
| Multicast | IGMP Snooping v1/v2/v3, Max 1024 multicast groups
MLD Snooping, Multicast VLAN, User quick exit mechanism |
| Port Mirroring | Bidirectional data mirroring based on port |
| QoS | Flow-based packet filtering, Priority Mark/ Remark Flow-based redirection, Flow-based rate limiting
8*Output queues of each port, 802.1p/ DSCP priority mapping |
| Diff-Serv QoS, Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
| ACL | ACL distribution based on port and VLAN
L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. |
| Security | IEEE802.1X & MAC address authentication
IP-MAC-VLAN-Port binding, MAC learning limit Broadcast storm control, Backup for host datum
Mac black holes, IP source protection, Anti-DoS attack SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection
AAA & RADIUS & TACACS+ certification, ARP inspection |
| DHCP | DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
| Management | System work log, Link Layer Discovery Protocol NMS platform cluster management (LLDP+SNMP) NTP clock, Cable length detection, SNMP V1/V2/V3 Ping detection, Web network management (HTTPS)
One click recovery, View CPU real-time utilization status
FTP, TFTP, Xmodem, SFTP file upload and download management Console/ AUX Modem/ Telnet/ SSH2.0 CLI command line configuration |
| System | Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5
and above Ethernet cable |
