| Model | POE33026PFM POE33026PFM-at |
| Interface Characteristics |
| Fixed Port | 1*RS232 console port (115200,N,8,1) 24*10/100/1000Base-T PoE ports (Data/Power)
4*100/1000Base-X uplink SFP fiber ports (including 2 combo ports) (Data) |
| Ethernet Port | Port 1-24 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex
MDI/ MDI-X self-adaption |
|
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
| Optical Fiber Port | Gigabit optical fiber interface, default no include optical module (optional
single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable/
Distance | Multi-mode: 850nm/ 0-500m, Single-mode: 1310nm/ 0-40km, 1550nm/
0-120km |
| Chip Parameter |
Network
Management Type | L2+ |
| Network Protocol | IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 52Gbps (non-blocking) |
Forwarding Rate
@64byte | 38.69Mpps |
| CPU | 500MHz |
| DRAM | 1G |
| FLASH | 128M |
| MAC | 8K |
| Buffer Memory | 8M |
| Jumbo Frame | 9.6K |
| LED Indicator | Power: PWR(Yellow), System: SYS(Yellow), Network: Link (Yellow), PoE:
PoE (Green), Fiber port: L/A (Green) |
| Reset Switch | Yes, press and hold the switch for 10 seconds and release it to restore the
factory settings |
| PoE & Power Supply |
| PoE Port | Port 1-24 |
| PoE Management | PoE power supply total power limit configuration Power delay start, PoE work and time scheduling
Port PoE working status display, Port PoE output priority configuration
Port PoE output power distribution, PoE on/off, af/at power distribution |
|
| Power Supply Pin | 1/2(+) 3/6 (-) |
| Max Power Per Port | 30W, IEEE 802.3 af/at |
Total PWR / Input
Voltage | 400W/ (AC100-240V) | 600W/ (AC100-240V) |
| Power Consumption | Standby<18W, Full load<380W | Standby<22W, Full load<600W |
| Power Supply | Built-in power supply,
AC100~240V 50-60Hz, 5.0A | Built-in power supply, AC100~240V
50-60Hz, 6.6A |
| Physical Parameter |
Operation TEMP/
Humidity | -20~+55°C, 5%~90% RH Non condensing |
Storage TEMP/
Humidity | -40~+75°C, 5%~95% RH Non condensing |

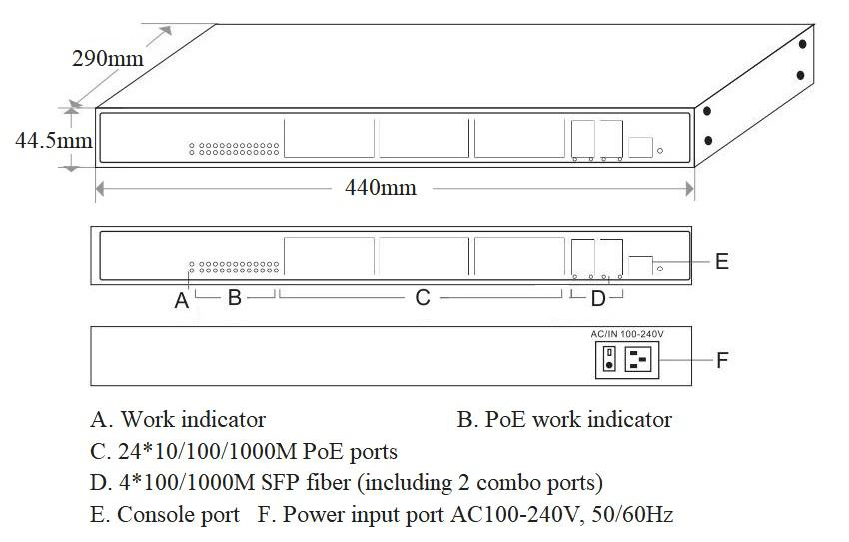

| Dimension (L*W*H) | 440*290*44.5mm |
| Net /Gross Weight | 3.8kg/ 4.7kg | 4.1kg / 5.1kg |
| Installation | Desktop, 1U/19’’ cabinet |
| Certification & Warranty |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B,
Certification
RoHS |
| Warranty | 3 years, lifelong maintenance. |
| Network Management Feature |
| Interface | Port temperature protection settings IEEE 802.3x flow control (Full duplex)
Broadcast storm control based on port speed
Port EEE Green Ethernet energy-saving configuration
Limit the speed of the message traffic at the inbound and outbound ports, with mini granularity of 64Kbps |
|
| L3 Feature | Static routing/ default routing max 128 entries
L2+ network management, ARP protocol, max 1024 entries
L3 routing and forwarding, support communication between different network segments and different VLAN |
| VLAN | Voice VLAN, QinQ configuration, IEEE802.1q VLAN based on MAC, VLAN based on the protocol
4K VLAN based on port, Port configuration of Access, Trunk, Hybrid |
| Port Aggregation | LACP dynamic aggregation, static aggregation
Max 13 aggregation groups and 8 ports per group. |
| Spanning Tree | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
Ring Network
Protocol | G.8032 (ERPS), Recovery time less than 20ms
255 Ring at most, Max 250 devices per ring. |
| Multicast | MLD Snooping, Multicast VLAN
IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out |
| Port Mirroring | Bidirectional data mirroring based on port |
| QoS | Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based rate limiting, Flow-based packet filtering
Flow-based redirection, Diff-Serv QoS, Priority Mark/ Remark
8*Output queues of each port, 802.1p/DSCP priority mapping |
| ACL | ACL issued based on port and VLAN
L2-L4 packet filtering function can match the first 80 bytes of the message and provide ACL definition based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. |
| Security | Port-based IEEE802.1X authentication MAC address the learning number limit SSL ensures data transmission security Port isolation, MAC address the black hole
IP+MAC+VLAN+port four-way binding function
User hierarchical management and password protection AAA & RADIUS & TACACS+ certification, ARP inspection IP source address protection, Host data backup mechanism SSH 2.0 provides a secure encrypted channel for user login
DoS attack prevention, Port broadcast message suppression
ARP message rate limit function, ARP intrusion detection function |
|
| DHCP | DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
| Management | System work log, Link Layer Discovery Protocol NTP clock, Cable length detection, SNMP V1/V2/V3 Ping detection, Web network management (HTTPS) NMS platform cluster management (LLDP+SNMP)
One click recovery, View CPU real-time utilization status
FTP, TFTP, Xmodem, SFTP file upload and download management Console/ AUX Modem/ Telnet/ SSH2.0 CLI command line configuration |
| System | Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5
and above Ethernet cable |
